JLR-4350

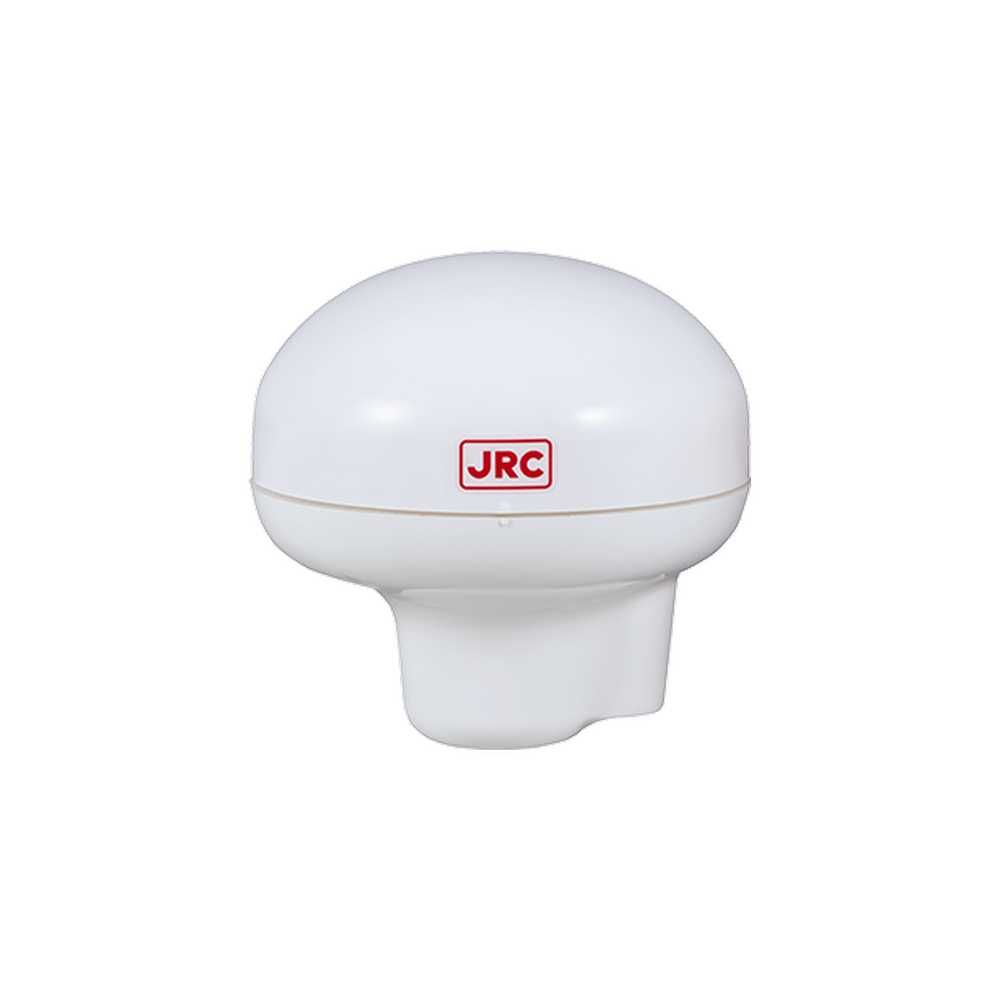

GPS Sensor JLR-4350

Realized high-accuracy positioning with multi-GNSS compatibility. It corresponds to five satellite systems: GPS, GLONASS, BeiDou, and SBAS, providing higher accuracy than single positioning by GPS.

The newly designed multi-GNSS compatible sensor allows simultaneous reception of signals from up to 22 satellites, achieving stable positioning.

Quick positioning capability: Typically 4 seconds (hot start fix) for the first position fixing without GPS almanac data. Positioning completes in 35 seconds (cold start fix) after power on, even if the receiver has been left powered off for a long time.

Complies with the output format of NMEA 0183 and IEC 61162-1 standards, compatible with versions 1.5, 2.1, 2.3, and 4.0. Can be connected to radar, fish finder, plotter, etc.

• Sensor Type: Multi-GNSS (GPS / GLONASS / BeiDou / SBAS)
• Maximum Number of Tracked Satellites: 22 Satellites
• Frequency:
  • 1575.42 MHz±1 MHz (C/A Code) GPS/SBAS
  • 1598.063 MHz to 1605.375 MHz (FDMA) GLONASS
  • 1561.098 MHz±2 MHz (B1) BeiDou
• Sensitivity: less than -144 dBm
• Time to First Fix:
  • Typically 35 seconds (Cold Start Fix)
  • Typically 33 seconds (Warm Start Fix)
  • Typically 4 seconds (Hot Start Fix)
• Position Update: Normally every 1 second
• Data Output: Selection among NMEA 0183, IEC 61162-1
• Geodetic Datum: Selection among 48 geodetic datum (Default: WGS-84)
• RAIM Function: Built-in
• Power Supply Voltage / Power Consumption: 12/24 VDC / less than 1.0 W
• Operating Temperature: -25 ℃ to +55 ℃
• Mass: Approx. 1.2 kg
• Protection Rate: IP56, IEC 60945 Ed.4 conformant

• GPS Sensor (JLR-4350): Including 15 m (49.5 ft) cable with connector
• Instruction Manual (7ZPNA4693)
• Cable Guard Rubber (MPPK31468)
