- Four Selectable Frequencies: Enables users to choose four frequencies within the broadband transducer range for better fish detection and water depth searches. Flexible selection by 0.1 kHz step avoids interference with other vessels’ sounders.
- Condition Memory: Stores up to six settings that can be quickly recalled using CM keys.
- Image Storage: Stores up to 500 screen images in built-in memory for later recall with a single touch.
- Good Visibility Under Sunlight: Features a 15-inch XGA display with anti-reflection coated filter for enhanced visibility and condensation prevention in direct sunlight.
- CCD Camera Input: Allows connections with owner-supplied CCD cameras and external monitors for comprehensive graphic presentation.

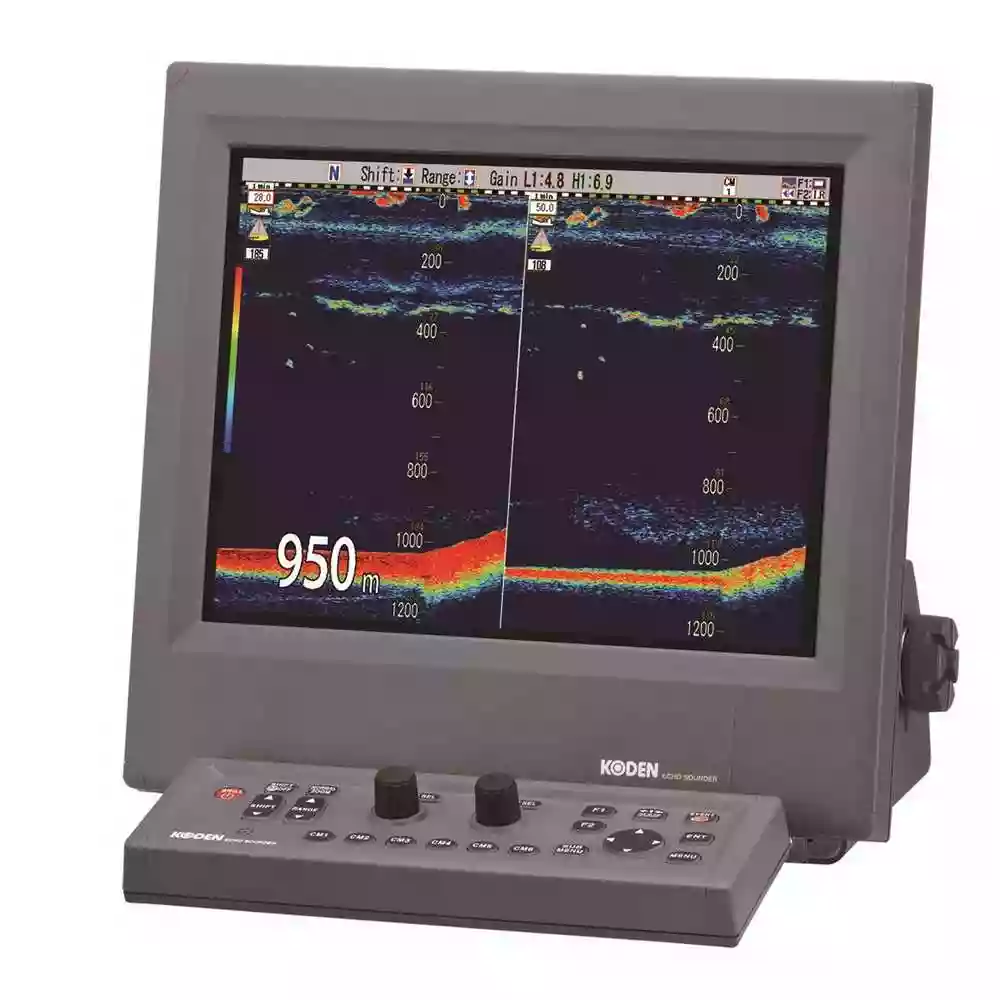

Koden CVS-875D Echo Sounder
Request a quote for latest pricing
Digital Broadband Sounder Perfect solution for your fishing
- Main Functions: Interference rejection, color rejection, VRM, noise reduction, white line, draft correction, water temperature correction, boat speed correction, image storage (500 images), Sona-Tone™, fishing hot spot, event memory, simple plotter, panel illumination, power reduction, external trigger, detection area display, CM key, water temperature graph, individual range/shift operation, external memory storage (SD card, USB memory), heaving compensation, bottom hardness display.
- Basic Range:
- 1 to 3000 meters
- 5 to 8000 feet
- 1 to 1700 fathoms
- 1 to 2000 Italian fathoms
- Output Power (RMS): 1 to 3 kW
- Transducer: TDM-052A, TDM-062A, TDM-083, TDM-091/091D, TDM-071, TD-284/284A, TD-504T/504F, TD-501C, TD-501T-3B, TD-754, TD-66
- Output Frequency:
- 38 to 75 kHz and 130 to 210 kHz
- 38 to 75 kHz and 85 to 135 kHz
- 28 to 60 kHz and 130 to 210 kHz
- 42 to 65 kHz and 130 to 210 kHz
- 35 to 65 kHz
- 28 kHz
- 50 kHz
- 50/200 kHz
- 75 kHz
- 200 kHz
- Water Protection: IPX5 (Display unit, Operation unit)
- Dimensions:
- Display Unit: 375 (H) x 381 (W) x 265 (D) mm
- Operation Unit: 100 (H) x 324 (W) x 54 (D) mm
- Weight:
- Display Unit: 13 kg
- Operation Unit: 0.7 kg
- Power Supply: 21.6 to 31.2 VDC
