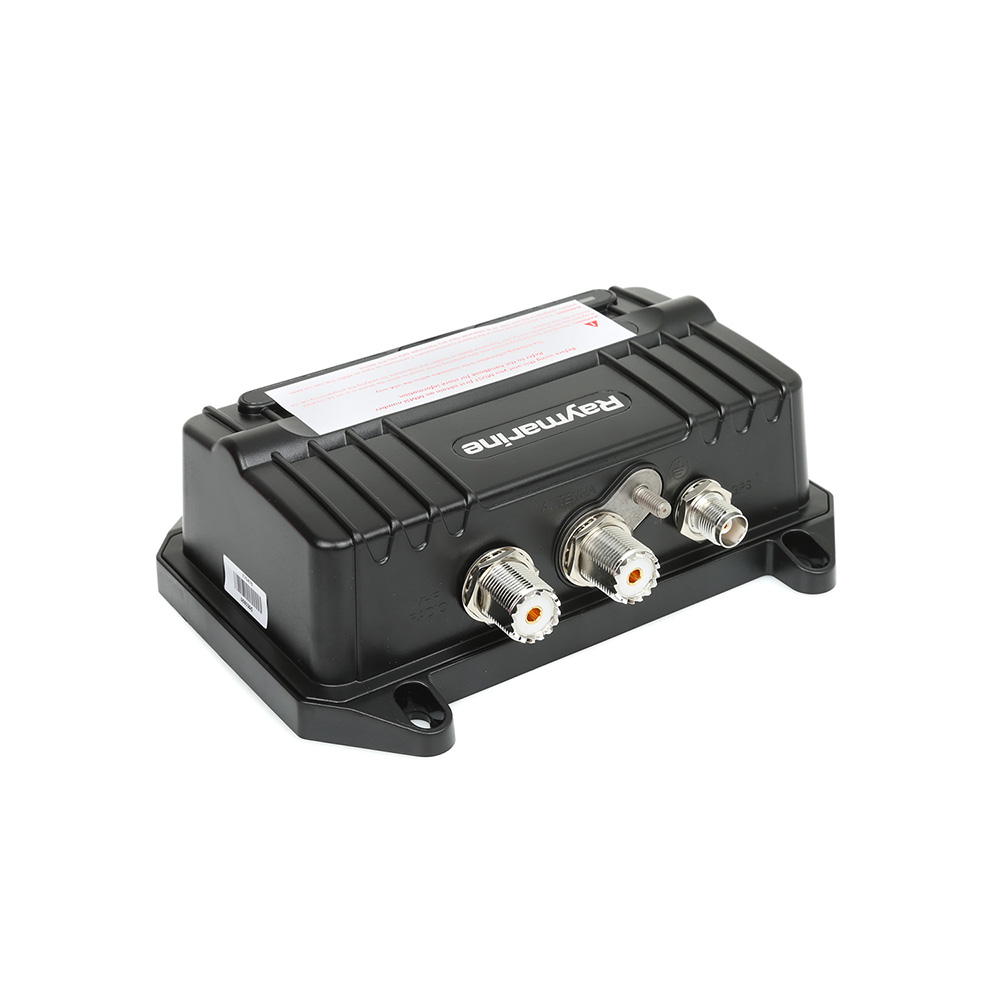

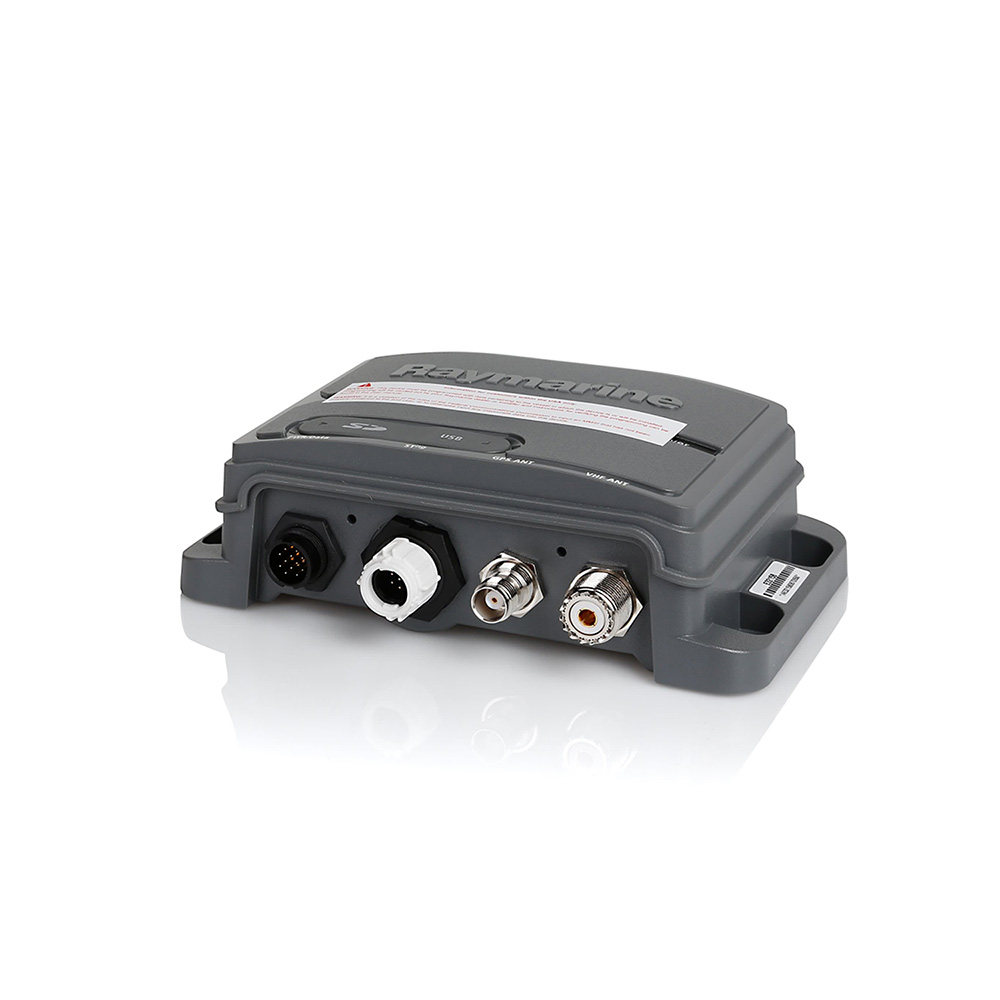

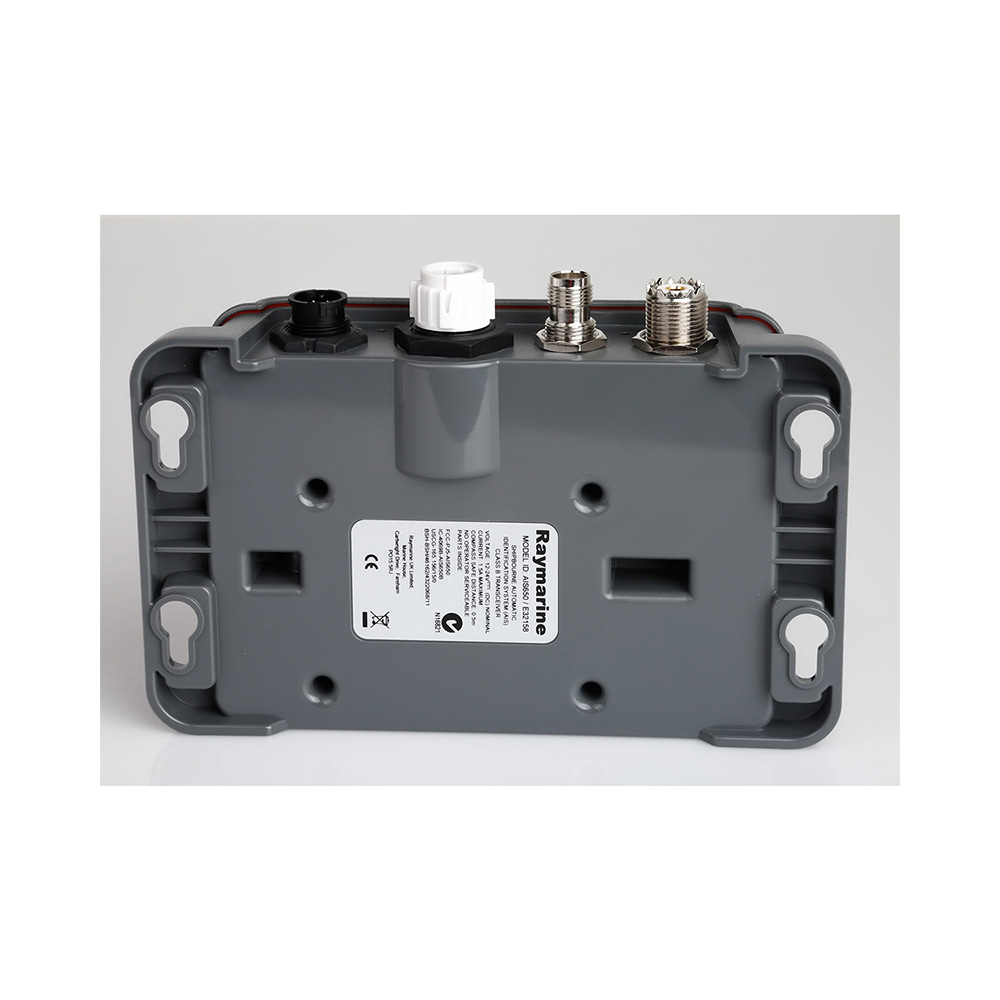

raymarine ais650 class b transceiver e32158 marine comms ais transponders 1
raymarine ais650 class b transceiver e32158 marine comms ais transponders 2
raymarine ais650 class b transceiver e32158 marine comms ais transponders 3

AIS650 Class B Transceiver (E32158)

RAYMARINE

Request a quote for latest pricing

Key Benefits:

  • Dual channel receivers – AIS vessel monitoring of class A and B transmissions
  • Dedicated 50 channel RAIM compliant GPS receiver for superior accuracy
  • Hardware and software selectable Silent Mode for privacy or security. Silent mode turns off your AIS transmitter while still enabling you to see transmissions from other vessels
  • SeaTalkNG networking for simple integration with Raymarine C Series Widescreen, E Series Widescreen, and G Series systems
  • USB 2.0 port for setup and diagnostics
  • SD Card Slot for recording of AIS data
  • Built-in NMEA multiplexer simplifies integration with legacy Multifunction Displays, VHF radios, and 3rd party devices
Request A Quote
SKU: E32158 Categories: , , Brand:
  • Dual Channel Receivers: AIS vessel monitoring of class A and B transmissions.
  • Dedicated 50 Channel RAIM Compliant GPS Receiver: Provides superior accuracy.
  • Hardware and Software Selectable Silent Mode: For privacy or security. Silent mode turns off your AIS transmitter while still enabling you to see transmissions from other vessels.
  • SeaTalkNG Networking: Simplifies integration with Raymarine C Series Widescreen, E Series Widescreen, and G Series systems.
  • USB 2.0 Port: For setup and diagnostics.
  • SD Card Slot: For recording AIS data.
  • Built-in NMEA Multiplexer: Simplifies integration with legacy Multifunction Displays, VHF radios, and third-party devices.
  • Waterproofing: IPX2
  • Operating Temperature Range: -15˚C to +55˚C (5˚F to 131˚F)
  • Storage Temperature Range: -20˚C to +75˚C (-4˚F to 167˚F)
  • Humidity: Up to 93% at 40˚C (104˚F)
  • Nominal Supply Voltage: 12 V to 24 V dc
  • Operating Voltage Range: 9.6 V to 31.2 V dc (rated supply -20%, +30%)
  • Peak Current in Normal Operation: 2A
  • Average Power Consumption: <3W
  • LEN: 1 (Refer to SeaTalkNG reference manual for further information)
  • Fuse / Breakers: In-line fuse 5 A
  • Operating Frequency Range: 156.025 MHz to 162.025 MHz
  • Channel Spacing: 25 KHz
  • Transmitter: 1 transmitter
  • Receiver Sensitivity: –107 dBm
  • Receivers: 2 receivers
  • Weight: 285 grams
  • Connectors:
    • VHF Antenna — SO-239 co-axial connector
    • GPS Antenna — TNC co-axial connector
    • SeaTalkNG
    • NMEA0183 HS — stripped wires
    • NMEA0183 LS — stripped wires
    • Power — stripped wires
    • AIS Silent — stripped wires
    • SD Card
    • USB — NMEA0183
  • Transceiver Standard: Class B IEC62287-1
  • GPS Receiver Specification:
    • Receiver Channels: 50
    • Nominal Time to First Fix: 36 seconds
