- Sonar Performance:
- Sonar Type: Wide Spectrum CHIRP
- Power: Max 4kW output using 2 independent CHIRP channels
- Frequency & Channels: Dual independent CHIRP channels from 25 to 250kHz
- Depth Range: 10,000 ft (3,000 m)
- Features:
- TruZoom™: Provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar
- Automatic transducer identification with Airmar Xducer ID
- Airmar Wide Beam transducer compatible
- Waterproofing Standard: IPX6 waterproof rugged aluminum enclosure
- Compatibility: aSeries, cSeries, eSeries, New eS Series, gS Series
- Power:
- Nominal Supply Voltage: 12/24 V DC
- Power Consumption: 30.6W (Maximum)
- Connections: Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection
- Weight: TBA

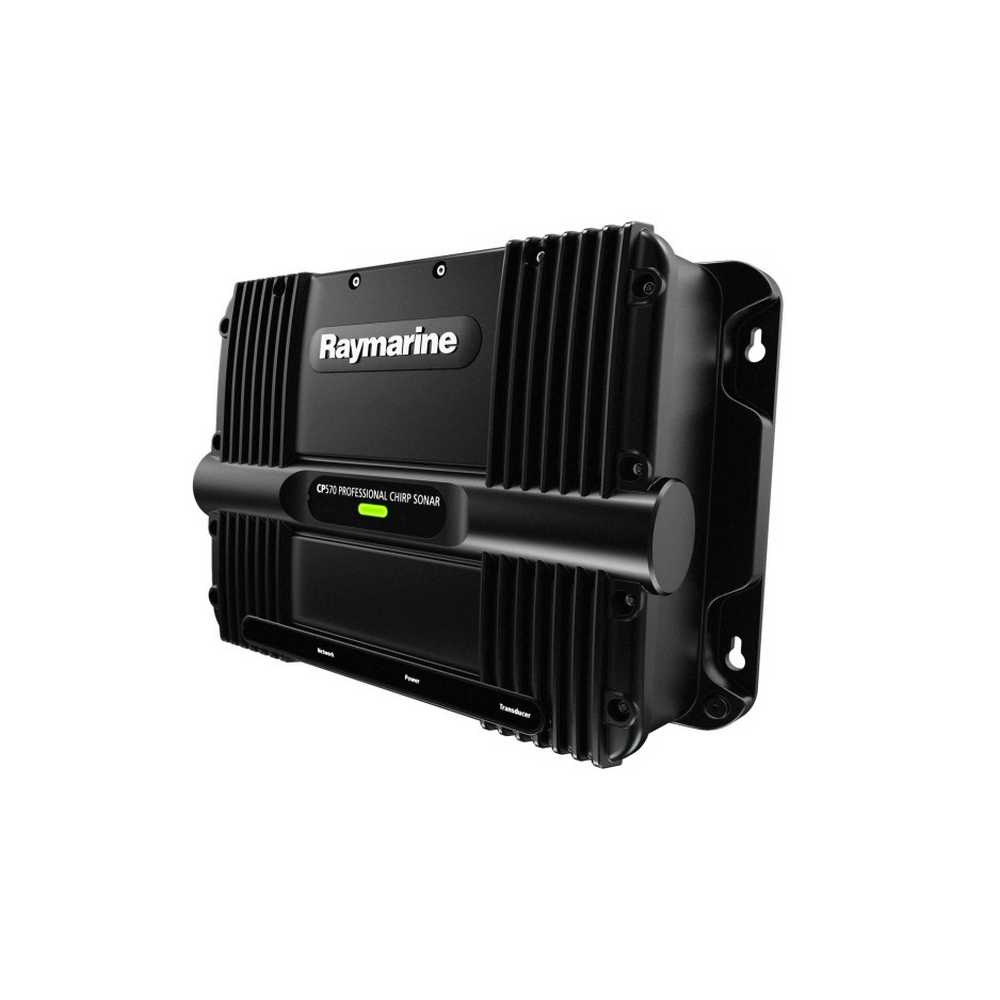

CP570 Profession CHIRP Sonar (E70258)
Request a quote for latest pricing
superior target definition and enhanced sensitivity using raymarine’s exclusive wide spectrum chirp sonar technology.
- target fish, identify bait, and track the sea floor down to 10,000ft. (3,000m) with two adjustable chirp sonar channels.
- hunt for fish in different parts of the water column with the cp570’s two fully independent 2kw sonar channels.
with 10 times the resolution of ordinary sonars the cp570 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below.
- truzoom™ magnification mode reveals extra target detail without any loss of resolution.
- the cp570’s ultra-fast ping rate processing delivers accurate bottom tracking in extreme offshore conditions.
choose optional low, medium, and high chirp frequency transducers in standard or wide-beam to match your fishing preferences.
- the cp570 automatically recognizes connected transducers and adjust sonar parameters for optimized performance.
- view and control each chirp channel independently and create your own combination of full or split screen sonar windows on raymarine’s lighthouse ii powered multifunction displays.
