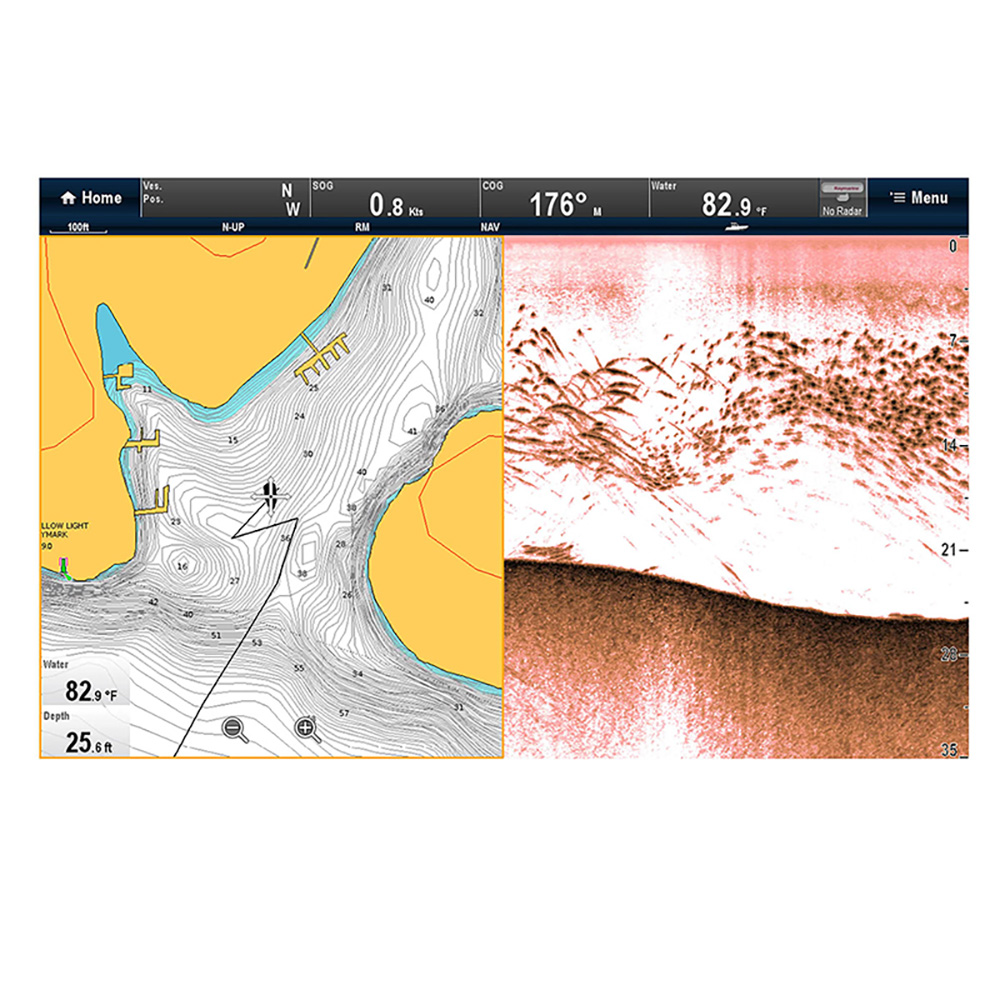

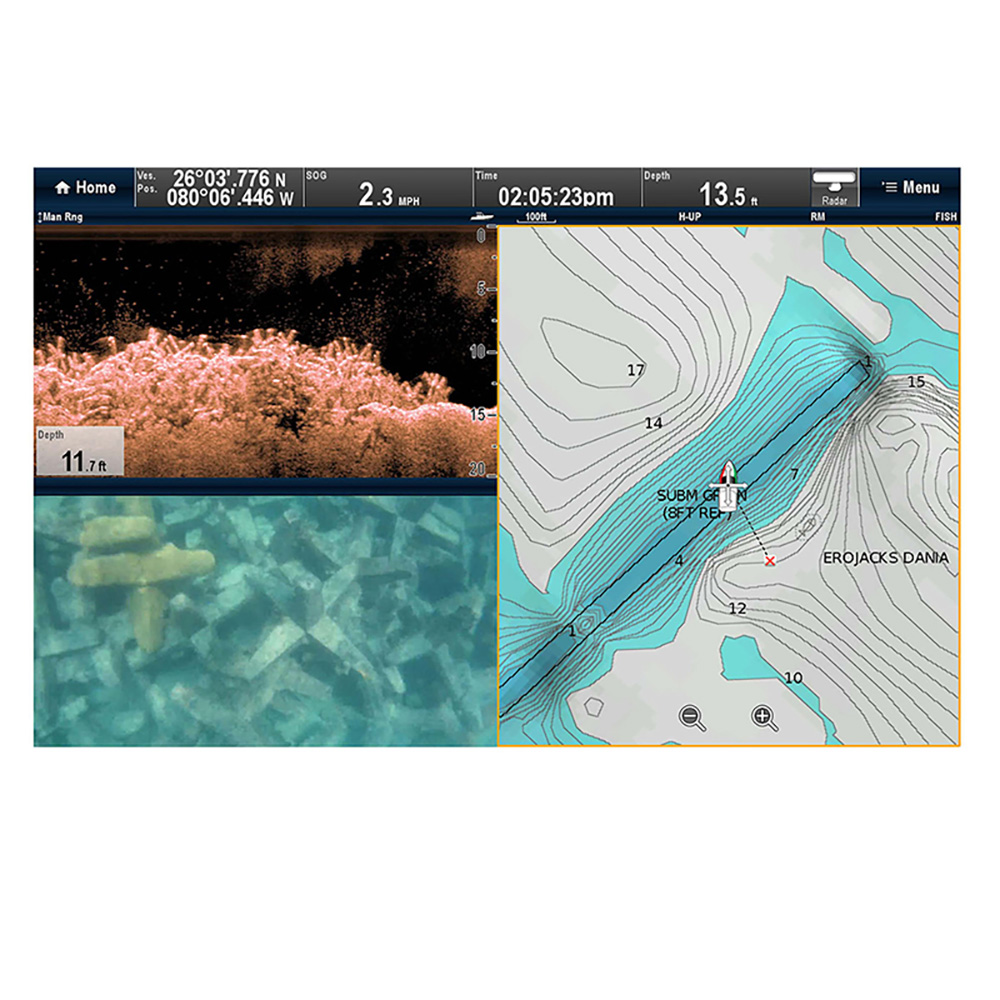

- Photo-like imagery of bottom structure using Raymarine’s CHIRP DownVision technology
- DownVision™ depth performance to 900ft
- Dual Channel CHIRP sonar; view high-resolution CHIRP DownVision structure imagery and target fish with CHIRP sonar simultaneously.
- Network the CP100 with Raymarine’s latest generation multifunction displays. From the compact a Series to the flagship gS Series, the CP100 brings underwater vision in resolutions up to 1280 x 800 pixels.

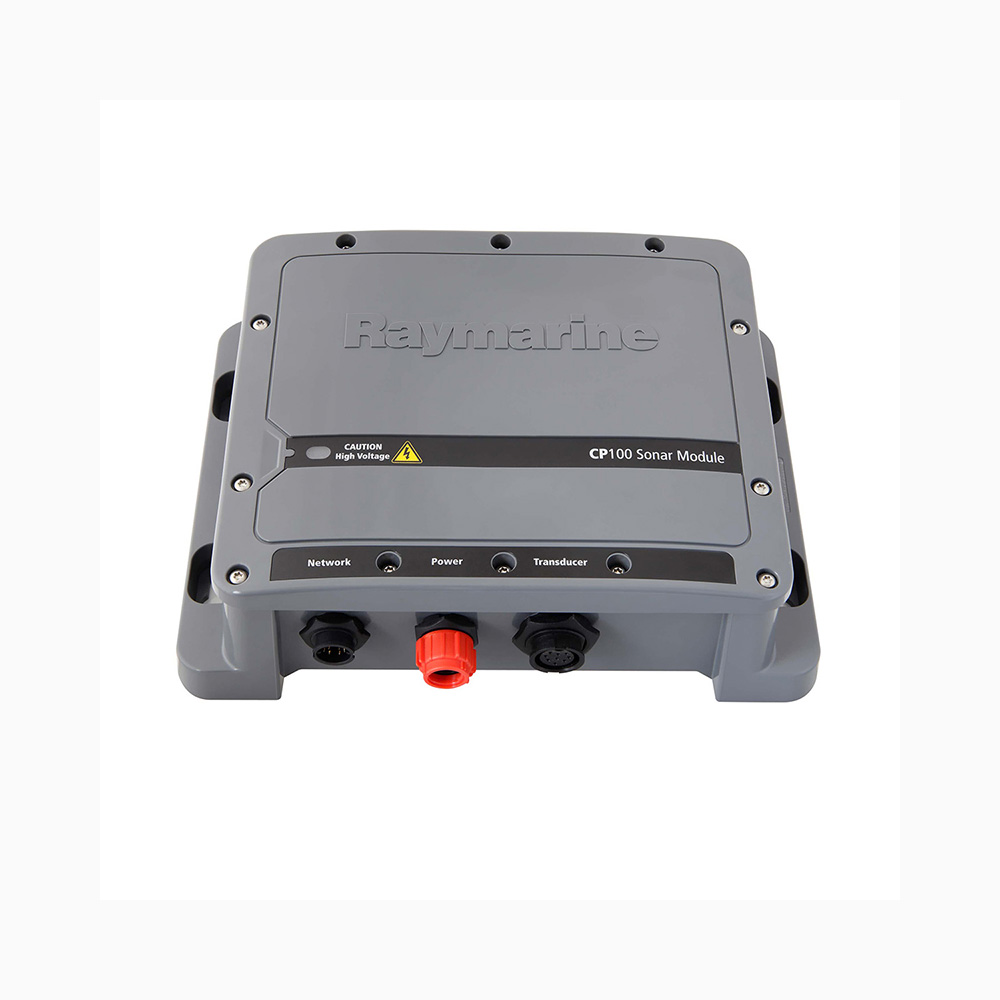

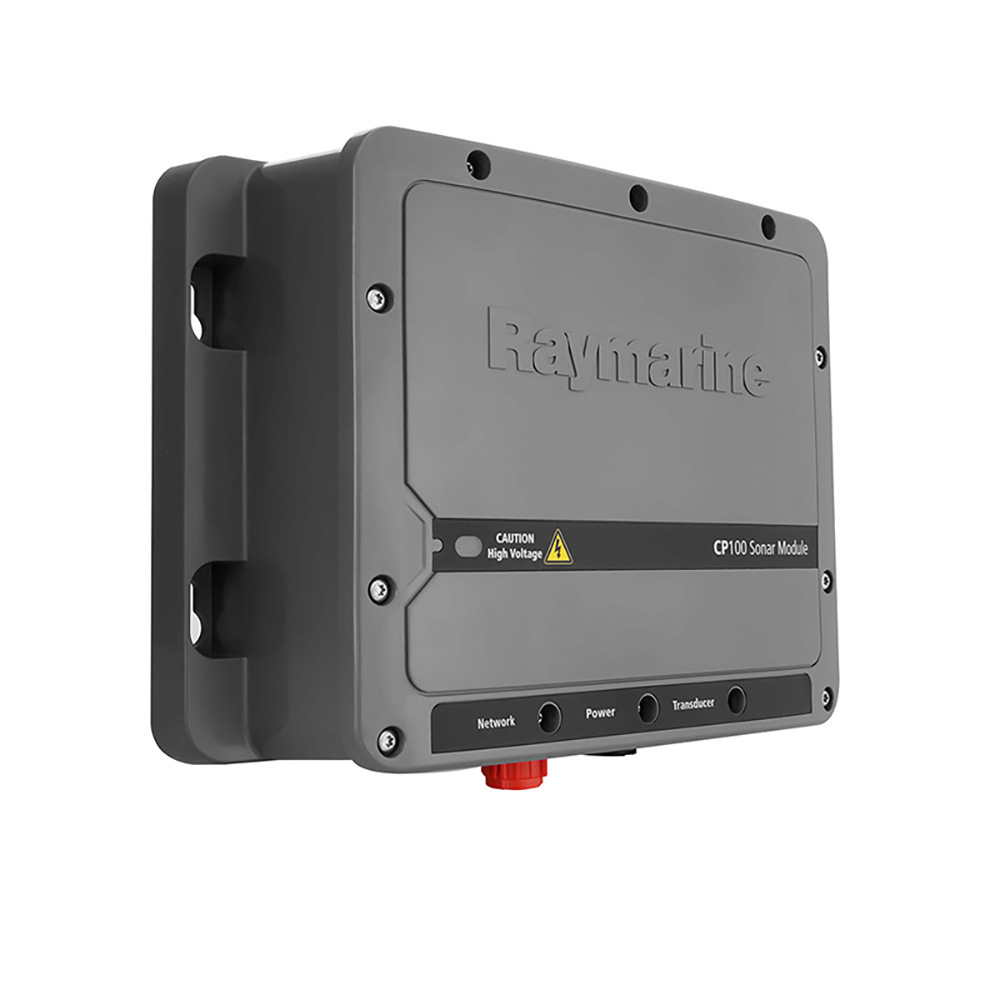

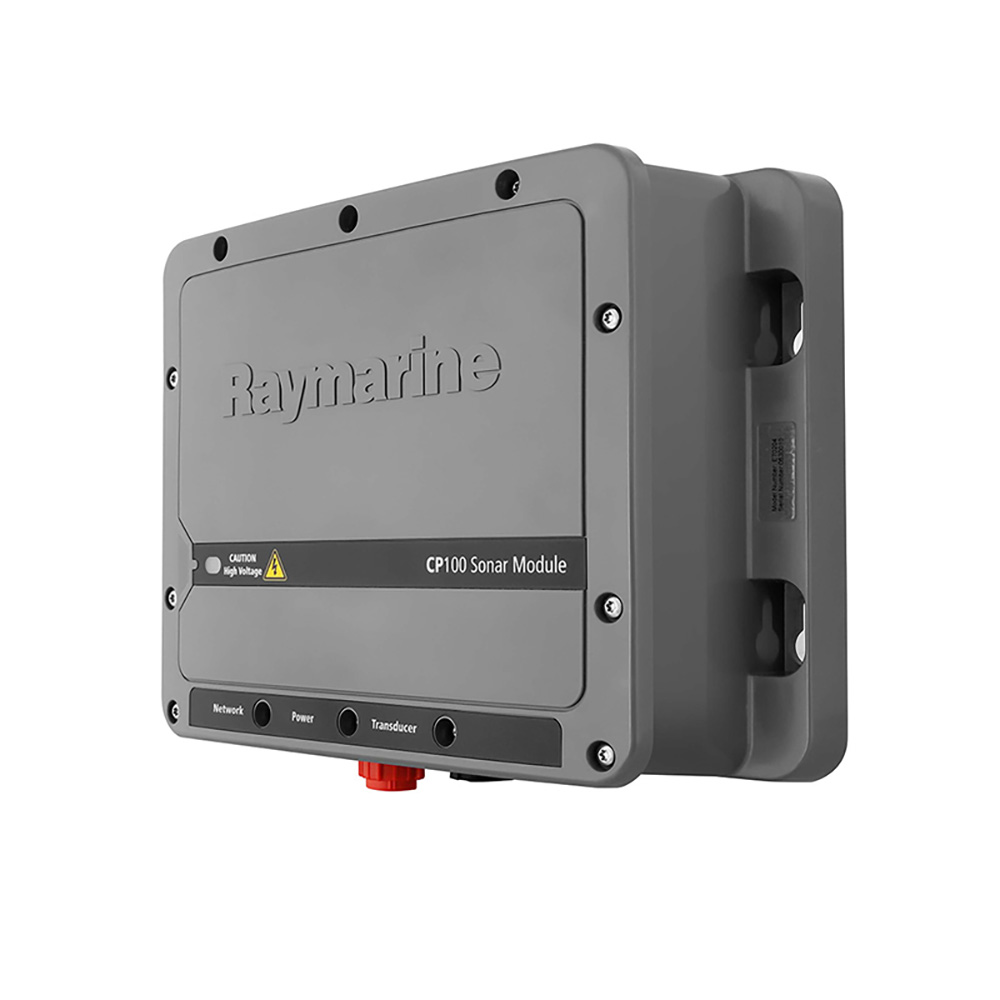

CP100 DownVision Echo Sounder / Fish Finder (E70204)
Request a quote for latest pricing
Key Benefits:
- Photo-like imagery of bottom structure using Raymarine’s CHIRP DownVision technology
- DownVision™ depth performance to 900ft
- Dual Channel CHIRP sonar: view high-resolution CHIRP DownVision structure imagery and target fish with CHIRP sonar simultaneously
- Network the CP100 with Raymarine’s latest generation multifunction displays, from the compact a Series to the flagship gS Series, providing underwater vision in resolutions up to 1280 x 800 pixels
- Product Number: E70204
- Compatible with: aSeries, cSeries, eSeries, the New eS Series, and gS Series
- Sonar type: CHIRP
- Nominal supply voltage: 12/24V DC Systems
- Operating voltage range: 10.2 – 32 V DC
- Power consumption at full power: 3 watts
- Operating temperature range: 0ºC to +55ºC
- Storage temperature range: -30ºC to +70ºC
- Waterproofing standard: IPX6 and IPX7
- Connections: Power (power cable), transducer (9-pin connector), and Raynet network connector
- Transducer info: Max depth DownVision – 600ft, CHIRP – 600ft
- Sonar Module: 1
- Documentation Pack: 1
- Screw: 4
- Power Cable 1 m (3.28 ft): 1
