- Model / Part Number: Speed: E70063, Depth: E70064, Wind: E70065, BiData: E70066
- Nominal Voltage: 12V DC
- Operating Voltage Range: 10 – 16V DC
- Current Consumptions (12V Supply):
- Typical: Speed and Wind: 25mA, Depth: 30mA, BiData: 35mA
- Maximum: 100mA
- Operating Temperature: 0ºC to +55ºC
- Storage Temperature: -30ºC to +70ºC
- Relative Humidity: Up to 93%
- Water Proofing: IPX6
- Connections: SeaTalk, Transducer connections. Compatible with marine industry CAN systems
- Conformance: Europe 2004/108/EC

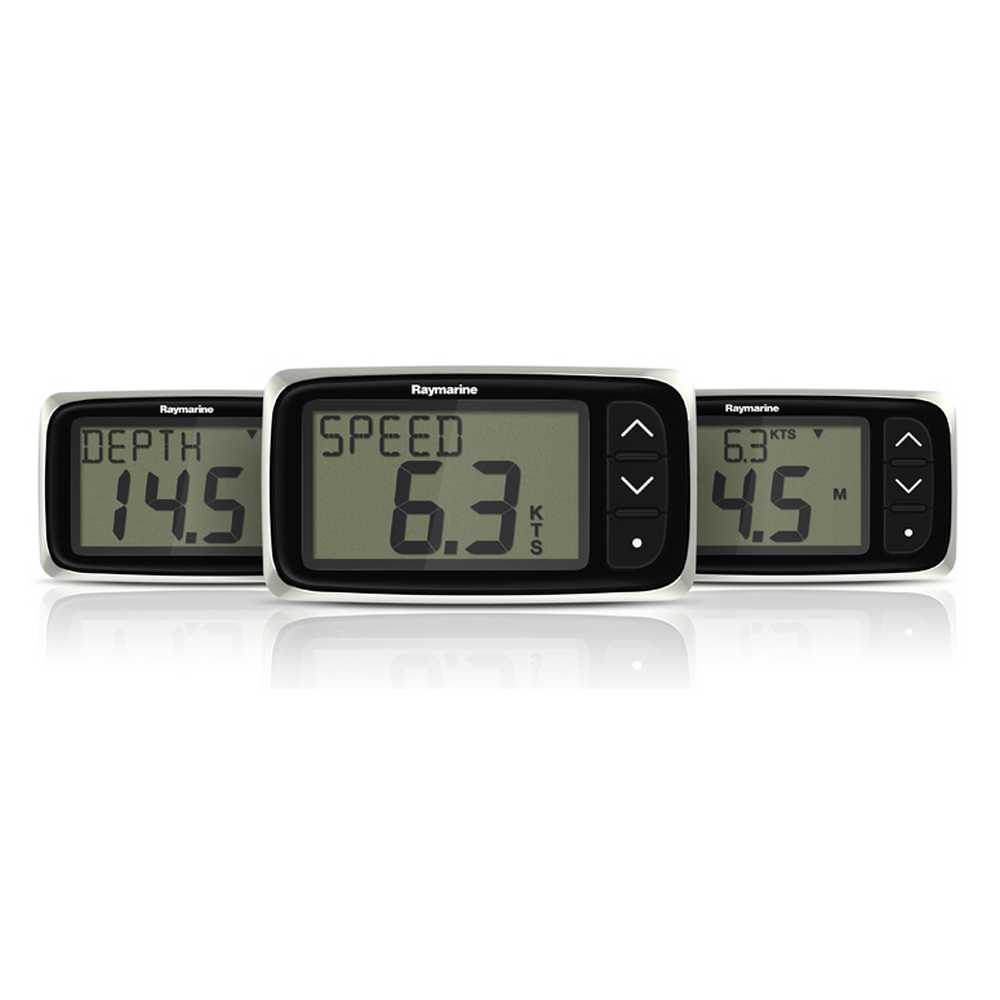

i40 Instrument Display
Request a quote for latest pricing
Key features:
- Red backlighting: For improved visibility.
- Large controls: For ease of use at sea.
- Low power consumption: For increased battery life.
- SeaTalk interface: (SeaTalk NG when used with SeaTalk converter).
- Built-in transducer interface.
- Same footprint: As the older Raymarine ST40 instrumentation.
