- Nominal Voltage: 12V DC
- Operating Voltage Range: 10 – 16V DC
- Power Consumption: typically <1W (display only) and 2.4W maximum with transducer connected
- Current Consumption: 45 to 65mA (display only) and 200mA maximum with transducer connected
- Operating Temperature Range: -20ºC to +55ºC
- Storage Temperature: -30ºC to +70ºC
- Relative Humidity: up to 93%
- Waterproofing Standard: IPX6
- Connections: 2 x SeaTalkng and transducers, Compatible with marine industry CAN systems
- Conformance: Europe 2004/108/EC

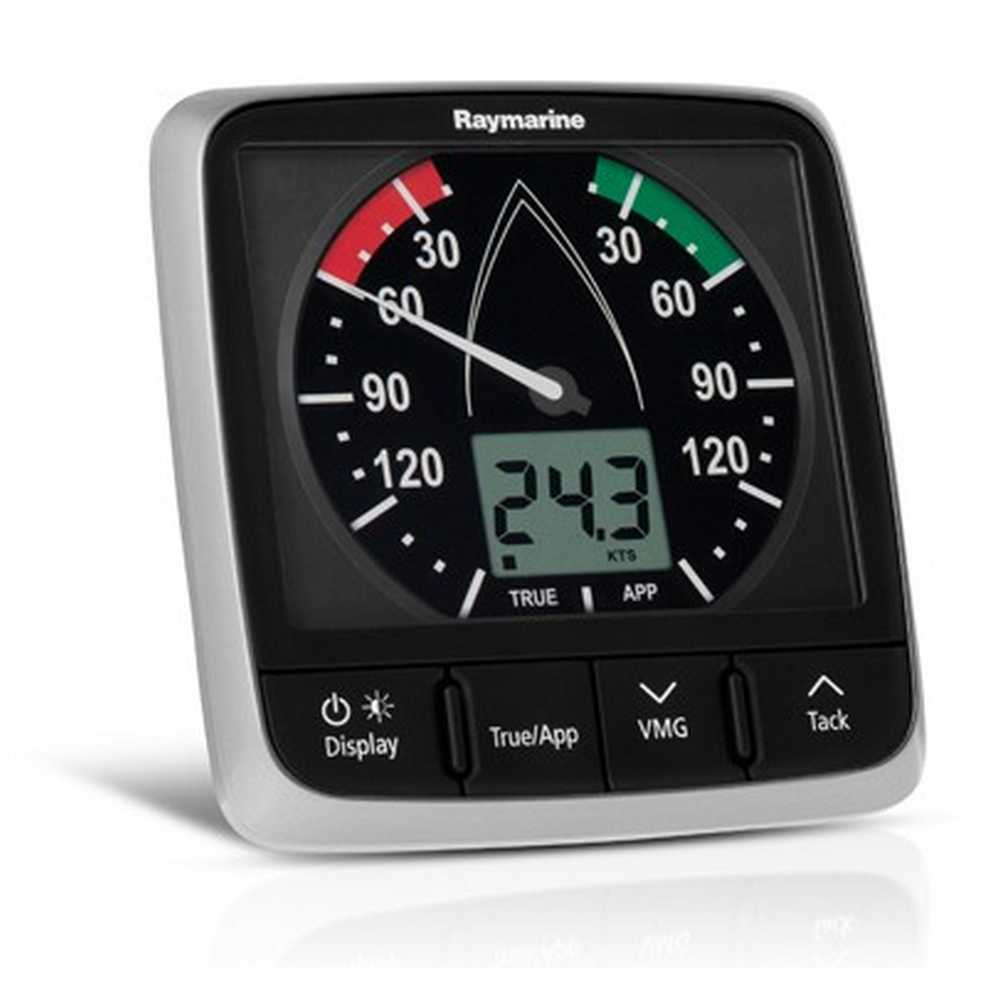

i60 Wind Instrument Displays
Request a quote for latest pricing
Dedicated function instruments for Wind and Close Hauled Wind
Key Features:
- Large numerals and digits
- Red backlighting for enhanced nighttime visibility
- SeaTalk and SeaTalkng interfaces
- NMEA 2000 (compatible) interface
- Built-in transducer interface
- 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
- Low power consumption
- Multiple data source support eliminates potential data conflicts
- Front mounted design for simple installation
