- Model: Magnum 4kW – 4ft
- Antenna Size: ~4ft 4in (1.31m)
- Max Range Scale:
- 72 nautical miles
- 96 nautical miles
- Scanner Weight (Pedestal + Antenna): 57.3 lbs (26kg)
- Beam Specifications:
- Horizontal Beam Width (Nominal): 1.85°
- Effective Horizontal Beam Width (Boosted): Less than 1°
- Vertical Beam Width (-3dB): 25°
- Antenna Side Lobes:
- Inside 10°: < -21dB
- Outside 10°: < -30dB
- Rotation Rate: 24 rpm / 48 rpm (automatic high-speed mode for ranges of 3 miles or less)
- Receiver Bandwidth: Matched digital filter for each pulse length
- Pulse Length/PRF Settings: 8
- Displayed Video Levels: 256 (8-bit)
- Power Specifications:
- Voltage: 10.8 to 32 volts DC (using supplied VCM100)
- Power Consumption:
- Transmit: <70W
- Standby: <30W
- Sleep: <1.2W
- Targets:
- Maximum MARPA Targets: 25
- Real-Time Heading Refresh: Yes
- True Trails: Yes
- Compatibility:
- Axiom / Axiom Pro (LH3.4 or later): Compatible with full feature set
- eS Series / gS Series (LH3.3 or later): Limited features; no automatic MARPA
- a/c/e/eS/gS Series (LH2 v19.03): Limited features; no Real-Time Heading, True Trails, or automatic MARPA
- E-Wide (v2.65): Limited features; no Real-Time Heading, True Trails, or automatic MARPA
- C-Wide (v2.35): Limited features; no Real-Time Heading, True Trails, automatic MARPA, or Bird Mode
- G-Series (v4.66): Limited features; no Real-Time Heading, True Trails, or automatic MARPA
- E-Classic (v5.69): Limited features; no Real-Time Heading, True Trails, automatic MARPA, or Bird Mode
- Other Specifications:
- Operating Temperature Range: 14°F to 131°F (-10°C to +55°C)
- Non-Operating Temperature Range: -20°C to +70°C
- Waterproofing Standard: IPX6
- Scanner Cable Length: 15m standard (optional: 5m, 10m, 25m)

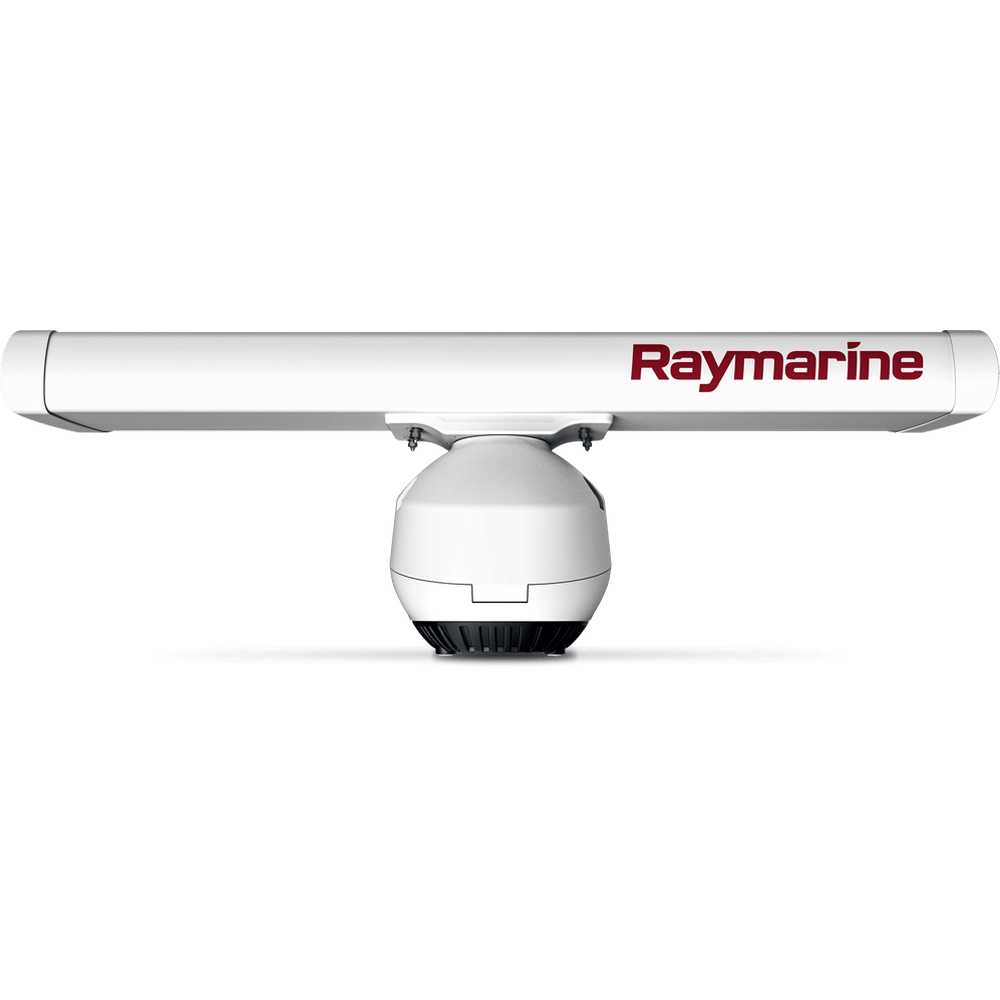

Magnum 4KW-4ft
Request a quote for latest pricing
High performance, long range open array radars
- LightHouse 2-based a, c, e, eS and gS-Series MFDs.
- C-Series widescreen and E-Series widescreen MFDs.
- E-Series classic, G-Series multifunction displays. Note: Not all Magnum features are available on all legacy MFDs.
