- Input Voltage: 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
- Networking: Wi-Fi or wired Ethernet (RayNet)
- Antenna Type: Patch Array
- Power Consumption:
- Transmit mode: 17W
- Standby mode: 7W
- Sleep mode: 2W
- Range: Scales from 1/16 to 24 nautical miles
- Transmit Frequency: 9354 to 9446 MHz
- Peak Power Output: 20W
- Duplexer: Circulator
- Pulse Widths (3 dB): 40 ns to 14.7 μs
- CHIRP Lengths: 400 ns to 20 μs
- CHIRP Bandwidth: Up to 32 MHz
- IF Bandwidth: 26 MHz
- Noise: Less than 4 dB
- Max. Range Scale: From 1/16 to 24 nautical miles
- Beamwidth (nominal): 4.9º horizontal and 20º vertical
- Polarisation: Horizontal
- Waterproofing: IPX6
- Weight: 5.6 kg (12.3 lb)

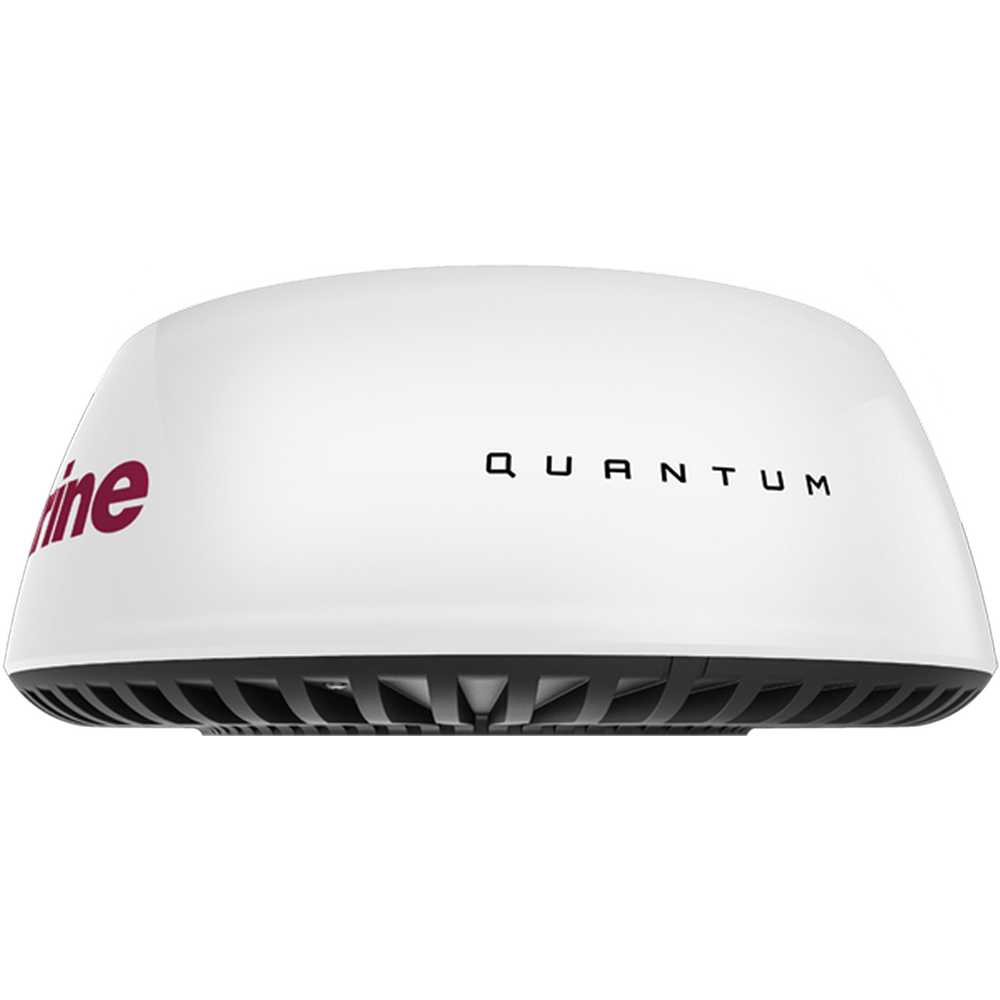

Raymarine Quantum CHIRP Radar
Request a quote for latest pricing
- Superior radar imaging.
- CHIRP pulse compression.
- Small target detection.
- Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD.
- Quantum’s small diameter power cable is easy to route through tight spaces.
- Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminates the need to run new radar cables.
- Weighs 50% less than traditional magnetron radars.
- Safe emissions thanks to Quantum’s low power solid state radar transmitter.
- Very low power consumption (17 Watts transmit and 7 Watts standby).
- Extended vessel battery life when under sail.
