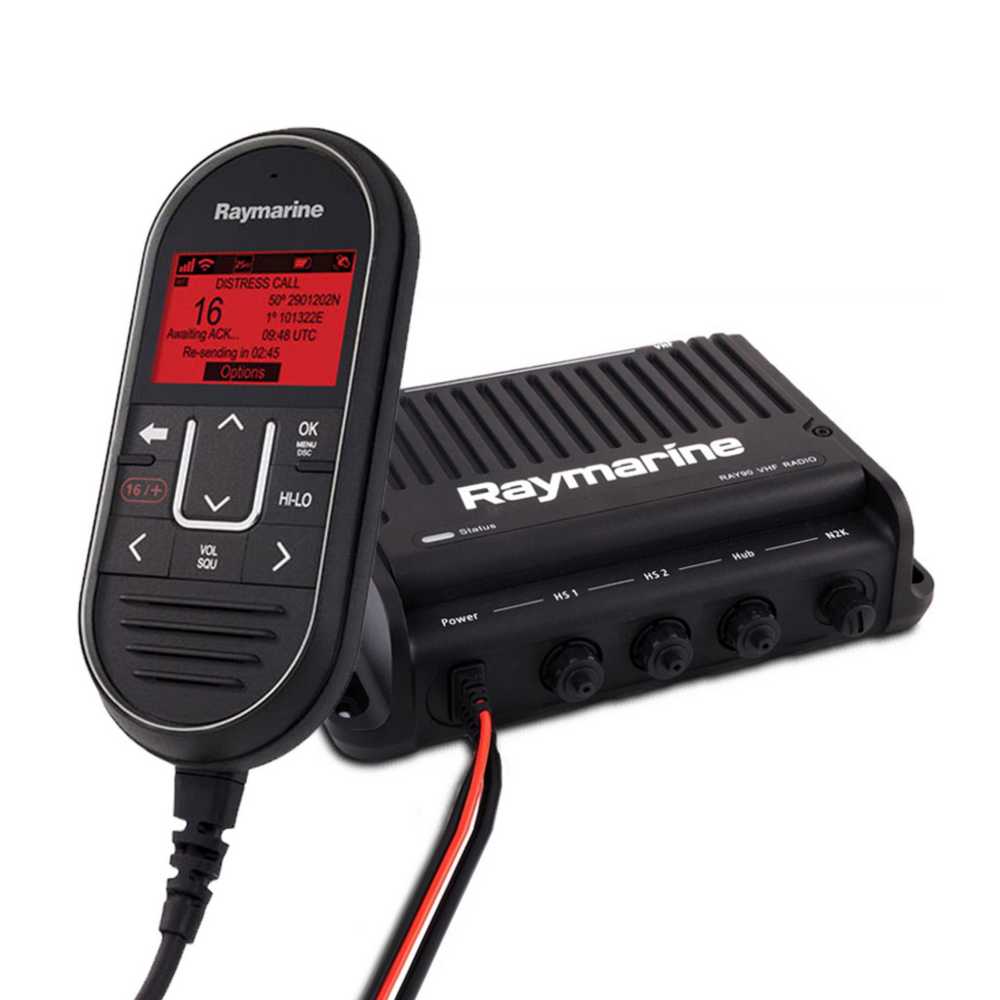

Raymarine RAY91 Marine VHF with AIS

Request a quote for latest pricing

Modular dual-station VHF radio system with AIS

Key Features:

Black box, dual-station capable VHF radio
Built-in Automatic Identification System (AIS) Class B Receiver
NEW – Wireless handset and active speaker available
Wired handset and passive speaker included
Expandable to 2 RayMic handsets
Built-in loudhailer and fog signal generator
GPS receiver (optional external antenna)
Class D Digital Selective Calling
Simple NMEA2000 and NMEA0183 Networking

Black box, dual-station capable VHF radio
Built-in Automatic Identification System (AIS) Class B Receiver
Wireless handset and active speaker available (Sold Separately)
Wired handset and passive speaker included
Expandable to 2 RayMic handsets
Built-in loudhailer and fog signal generator
Optional external GPS receiver and Class D Digital Selective Calling
Simple NMEA2000 and NMEA0183 Networking
Integrated Automatic Identification System (AIS) receiver
Use the Ray91 to receive navigation and safety broadcasts from nearby AIS-equipped vessels and share them over NMEA2000 or NMEA0183 with compatible MFDs
AIS-equipped vessels can easily be identified along with their vessel name, course, speed, CPA, and other voyage information
Communications Powerhouse: The Ray91 is equipped with a powerful 25-watt transmitter and commercial-grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch, and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS make setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation, the optional GA150 passive GPS antenna is required.
Position Tracking: Use Ray91’s position tracking feature to keep tabs on up to 5 nearby DSC-equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe, the Ray91 supports the ATIS system on navigable inland waterways.
Loudhailer: The built-in loudhailer will make you heard on-deck and across the harbor. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.
Waterproof & Ruggedized: Transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions, and oversized keys provide a sure grip with easy access to commonly used functions.

Electrical:
- Communications Port: NMEA0183 (version 4.01); NMEA2000 (version 3.101)
- Nominal Supply Voltage: 12V DC (Reverse polarity and overvoltage protected)
- Operating Voltage Range: 9 Volt DC to 16 Volt DC
- Current Consumption:
  - High Power (13.6V): Less than 6A
  - Standby: 600 mA
  - Receive: 2 Amps
- Fuse Requirements: Inline fuse = 1.25A, Thermal Breaker = 1.25A
Water Integrity: Complies with IPX6 & IPX7, EN60945
Temperature:
- Operating: -25°C to 55°C
- Storage: -25°C to 70°C
Transmitter:
- Channels: US, International, and Canadian VHF marine bands
- Frequency Range: 156.000 – 157.425 MHz
- Power Output: High Power = 25 Watt, Low Power = 1 Watt
Receiver:
- Receiver Type: Double Conversion Super Heterodyne
- Frequency Range: 156.000 – 157.425 MHz
- Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
- Squelch Sensitivity: Less than -2 dBµ EMF
GPS:
- GNSS Compatibility: GPS, GLONASS, BeiDou
- Cold Start: 29 seconds
- Accuracy: <2.5 meters without SBAS
Dimensions:
- Height: 63 mm
- Width: 235 mm
- Depth: 160 mm
- Weight: 2.6 Kg
