- RealVision 3D Sonar, CHIRP SideVision and DownVision, High Frequency CHIRP, and 1kW High Power CHIRP provide exceptional underwater imaging.
- Sonar depth capabilities:
- High Frequency CHIRP: 900 feet
- DownVision: 600 feet
- SideVision: 300 feet port and starboard
- 1kW CHIRP: 5,000 feet
- Multiple connection options:
- 1x RVX port for 25-pin RealVision connector
- 1x 1kW port for 11-pin 1kW connector
- 1x power connection
- 1x RayNet connection

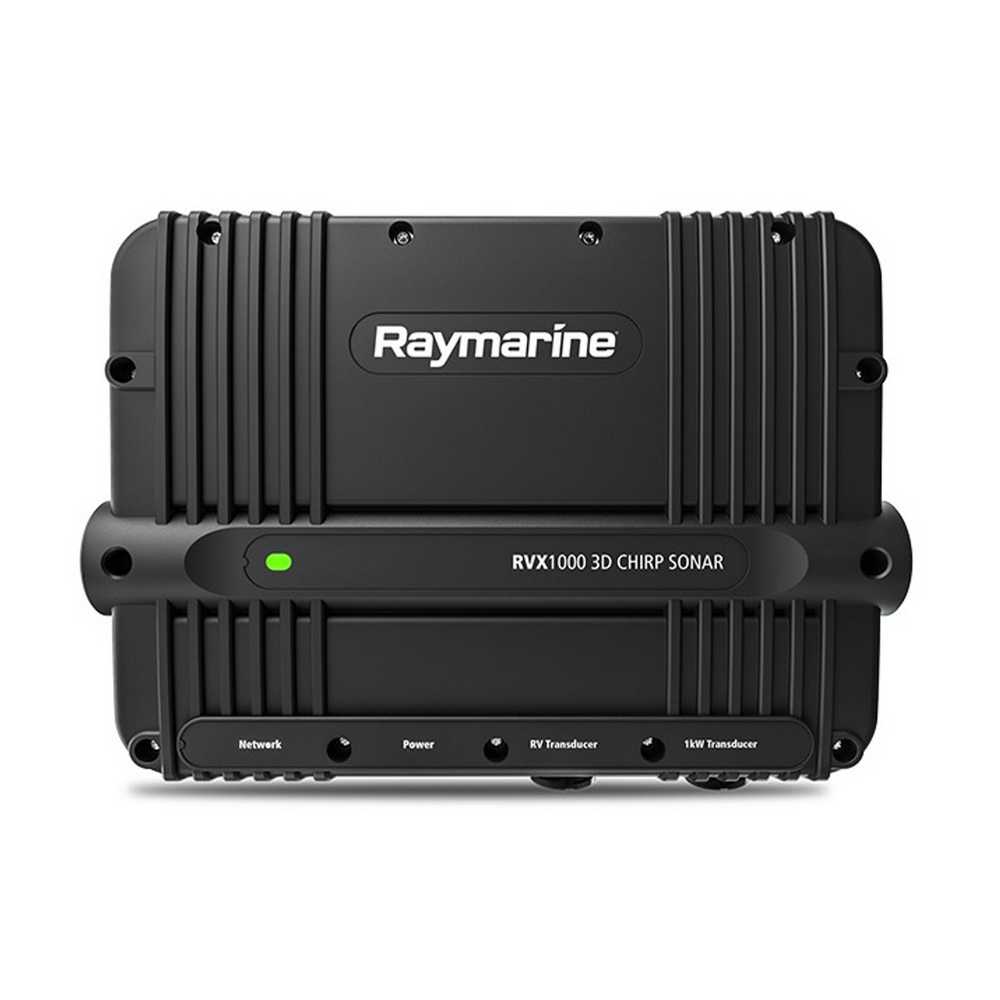

RVX1000 Fish Finder
Request a quote for latest pricing
- RealVision 3D
- CHIRP SideVision
- CHIRP DownVision
- Low-power, high-frequency CHIRP
- 1kW high-powered CHIRP Sonar (Low, Medium, High CHIRP, 50/80/100/160/200kHz)
- Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar.
- Sonar Scroll Back – rewind, pause and playback up to 10 minutes recorded sonar history to take a closer look at fish and structure, and easily plot waypoints.
- TruZoom™ magnification reveals extra target detail without loss of resolution.
- RealVision 3D™ sonar with GPS Track feature uses precision GPS to construct the most accurate 3D model of the underwater world, in real-time.
- Powerful 3D sonar upgrade solution for Raymarine eS and gS Series line of multifunction displays.
- The RVX1000’s dedicated quad core processor allows previous generation MFD’s to run multiple sonar channels simultaneously without any compromise in performance.
- Nominal Supply Voltage: 12 V and 24 V DC
- Operating Voltage Range: 10.8 V to 31.2 V DC
- Power Consumption: 10.4 W (Maximum)
- Current: 2.4 A Peak; 1.2 A RMS
- Fuse/Breakers: 5 A
- Waterproof Rating: IPX6/IPX7
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -30°C to +70°C
- Compatible with:
- Axiom / Axiom Pro (LH3.4.xx or later)
- eS Series / gS Series (LH3.4.xx or later)
- Transducer Options (25-pin RealVision):
- RealVision Transducers: Direct connect
- CPT-S Transducers: Adapter A80490 required
- DownVision Transducers: Adapter A80490 required
- Transducer Options (11-pin 1kW):
- Airmar CHIRP Transducers: Direct connect. Adapter A80328 required for single transducer use.
- Airmar 50/200kHz CP370 Connector: Adapter A80496 required
- Airmar 50/200kHz Embedded Connector: Not supported on RVX1000
- Note: Axiom Y-Cables are not supported on RVX1000
