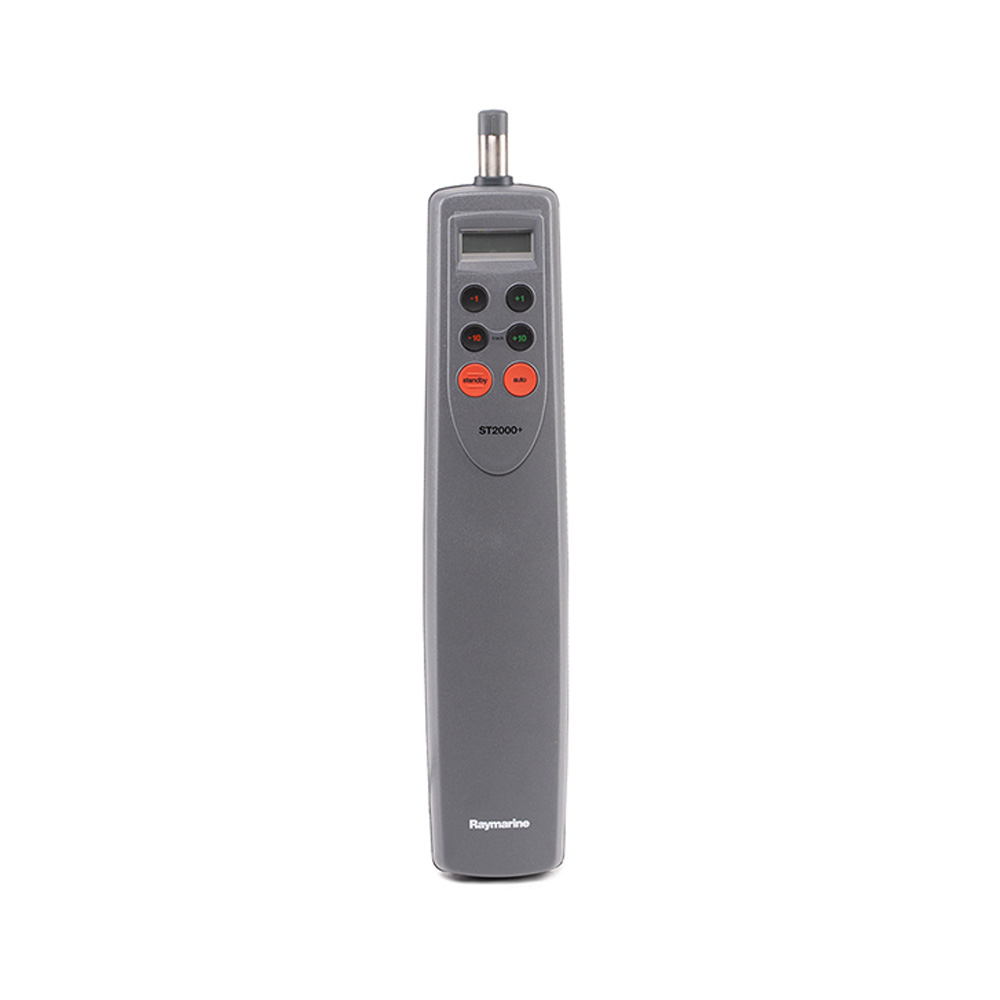

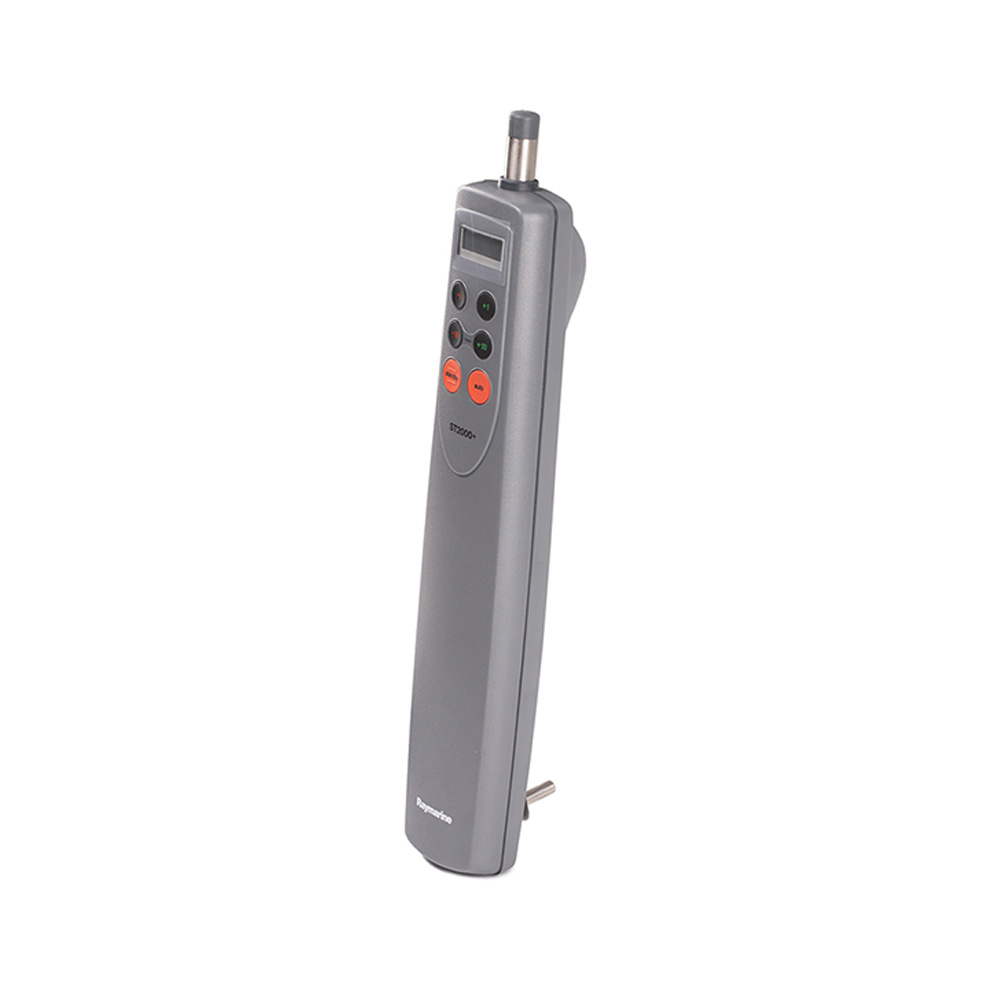

Raymarine ST2000 + Tiller Pilots

Request a quote for latest pricing

Auto Seastate feature within the pilot teaches the pilot to ignore the repetitive movements of the boat and to respond to only true course changes, thus providing a more comfortable passage.
Wind trim mode – the tiller pilot maintains a course relative to an apparent wind angle (input from wind vane required).
Auto tack – a simple two-button press to turn the boat through 100 degrees.

SKU: A12005 Categories: Autopilots, Marine Navigation Equipment, Request A Quote Brand: RAYMARINE

Invented by Autohelm in 1973, tiller pilots have consistently been the world’s most popular pilot ever since, setting the standard for performance, reliability, and ease of use.

AutoTack lets you handle the sheets while the pilot tacks the boat.
AutoSeastate intelligently keeps the boat on course while conserving power.

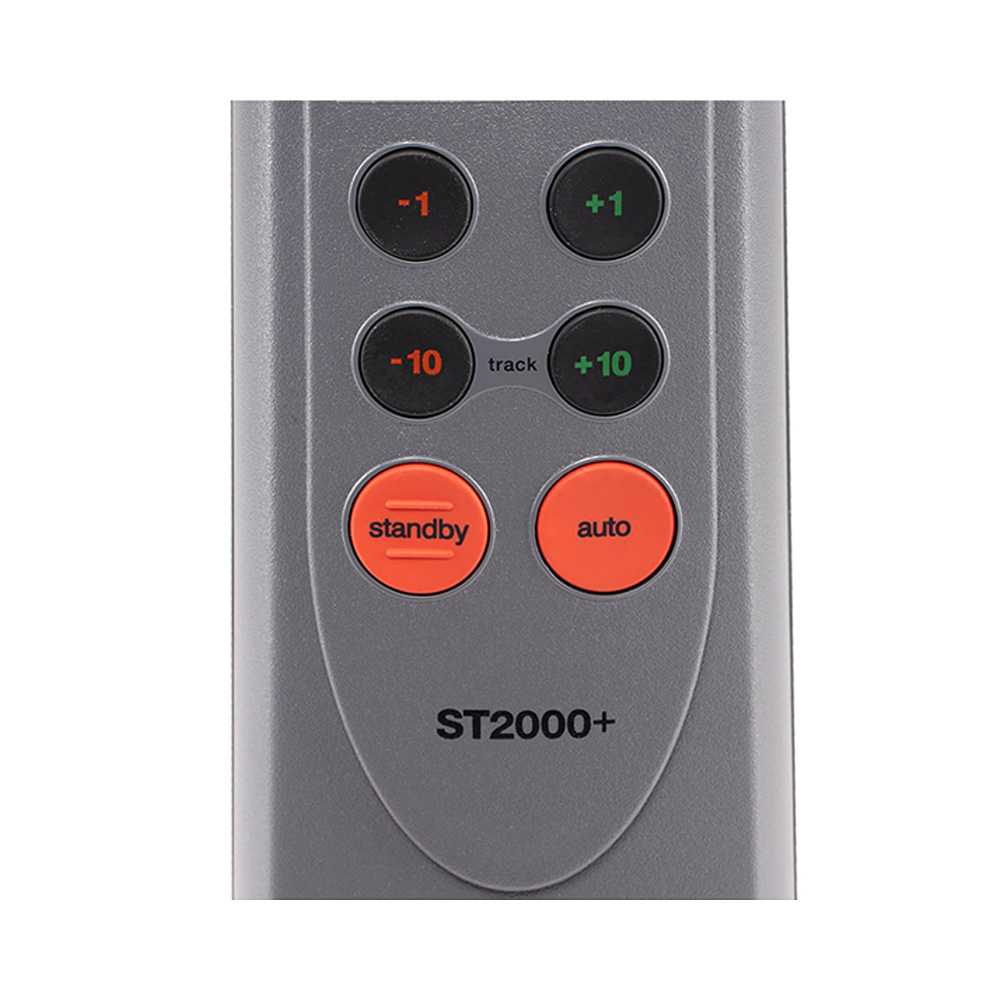

Whether used as a stand-alone pilot or with SeaTalk/NMEA GPS, the clear backlit LCD and 6-button keypad make these pilots safe and easy to use.

Recommended Maximum Displacement:

Raymarine ST2000: 4,500kg (10,000lbs)

Remember to always take the fully laden displacement weight of your vessel into account (often 20% above the designed displacement).

Model: Raymarine ST2000 Tiller Pilots
Part Number: A12005
Recommended Maximum Displacement: 4,500kg (10,000lbs)
Power Supply: 12V systems
Absolute Voltage Range: 10 – 16V DC
Power Consumption: 40mA
Weight: 1.53kg (3.4lbs)
Mounting Methods: Reversible port or starboard
Display Size: 45mm segmented LCD
Display Lighting: 3 levels plus off
Connections: NMEA 0183 input | SeaTalk
Thrust: 77kg (169lbs)
Stroke: 236mm (9.3in)

ST1000+, ST2000+ (A12004, A12005) Owner Handbook
