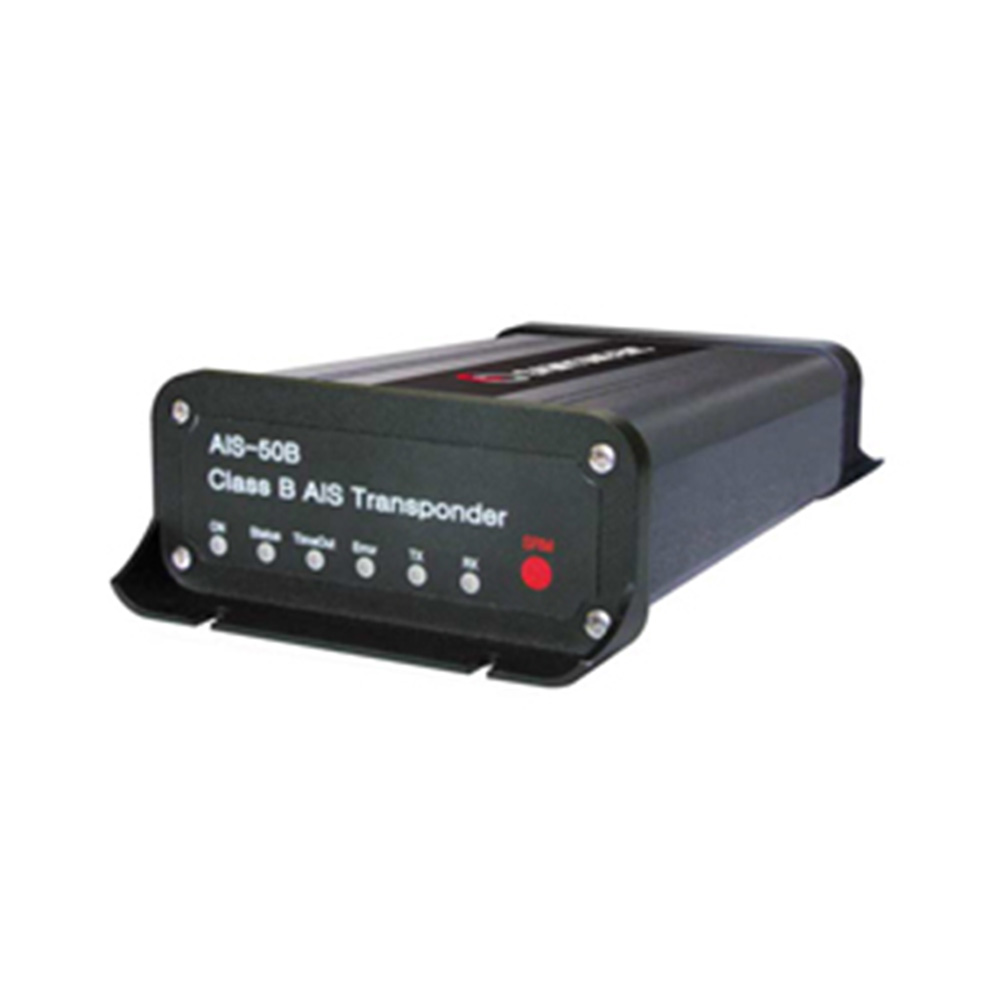

Samyung AIS-50B Class B Transponder
Request a quote for latest pricing
Features:
- Transfer data via AIS channel 87B (161.975MHz) & 88B (162.025MHz)
- Dual baud rate 4800 or 38400
- RS-232, 422 Input/Output Port
- Simple connection through RS-232, 422
- LED display for easy status check-up
- Enabled to transceive SRM (Safety Related Message)
- Frequency: 156.025MHz ~ 162.025MHz, Default channel 88B (162.025MHz), Default channel 87B (161.975MHz)
- Channel Spacing: 25kHz
- VHF ANT Connector: TNC
- GPS ANT Connector: BNC
- Antenna Impedance: 50Ω
- Frequency Stability Rate: ±10PPM (-20℃ ~ +60℃)
- Data Rate: 9600 bps
- Power Supply: DC 12V ~ 34V (DC 12V, 1.2A Max.)
- Operating Temperature: -15℃ ~ +55℃
- Output Power: 2W (33dBm ± 1.5dB)
- Modulation: GMSK
- Sensitivity: -107dBm
- Adjacent Channel: 70dB
- Cochannel: 10dB
- IMD: 65dB
- Blocking: 84dB
