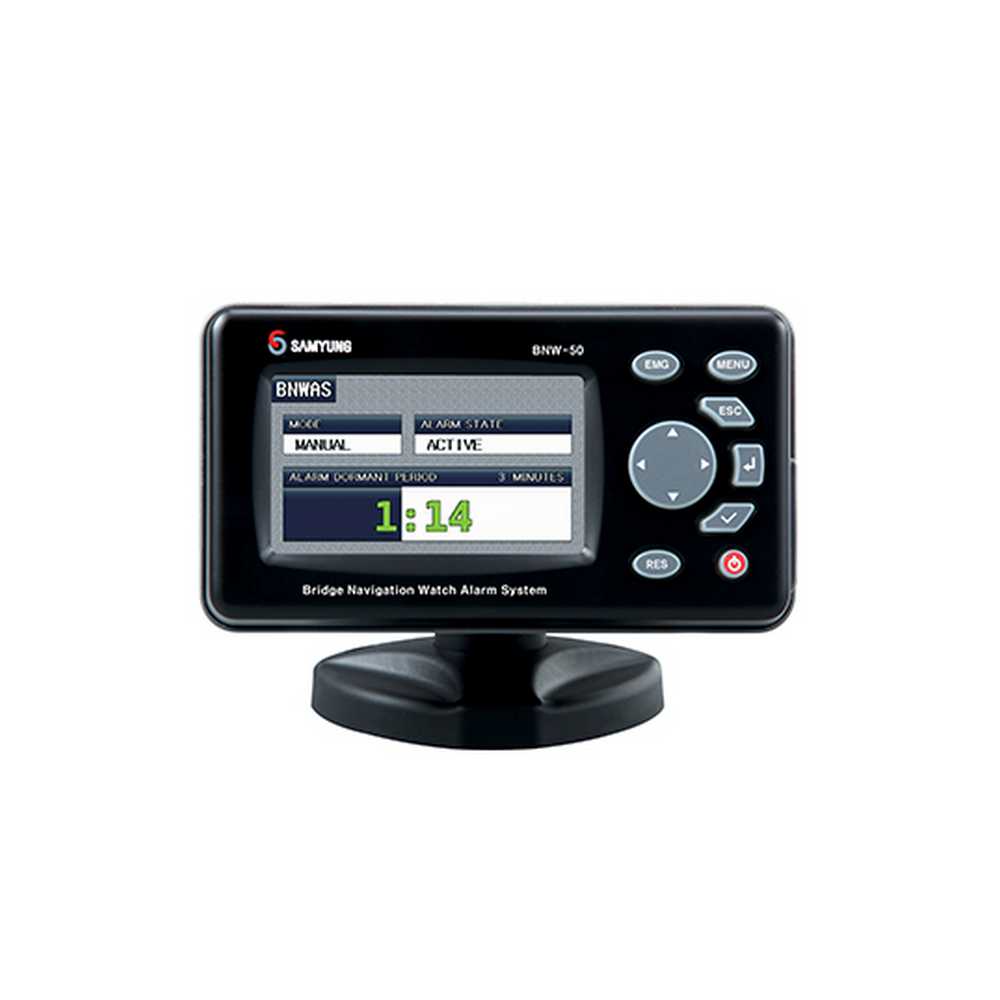

Samyung Enc BNW-50 BNWAS

Request a quote for latest pricing

Meets the requirements of the resolution IMO MSC.128 (75) (standard for SKDVP) and IEC 62616.
Complies with IEC 61162: format NHEA ALR proposal for issuing data VDR.
Connecting to other navigational equipment: Offers ALR (alarm) and EVE (reset).
Display time when connected GPS.
Flexible configuration by simply adding various options.
Function monitoring activity on the bridge of the ship’s capacity and determination to prevent assistant emergencies at sea.
Backup Assistant alert when watch officer does not respond to visual and audible signals.
Distress and has a button-click navigation.
Automatic reset when motion is detected using the motion sensor.
Use a password to protect the setup menu.
Ease of operation; displayed all the necessary digital and graphic information.

BNWAS (Bridge Navigational Watch Alarm System)

BNWAS is a necessary equipment for all cargo and passenger ships to ensure the safety of the crew, passengers, and cargo carried. The Samyung BNW-50 is approved by the Maritime and River Registers.

The Samyung BNW-50 has the ability to connect to the autopilot, voyage data recorders, and other vessel’s navigation equipment.

Display: 4.3 inch color TFT LCD, 480 x 272 pixels; 129 x 183 x 113.5 mm (h. / Br. / D.); 0.5kg
Operating Temperature Range: -15 °C ~ 55 °C
Power Supply: 110V / 220V AC 130mA
Backup Battery: 24V DC (for 6 hours, min. 3 Ah)
Processor Unit: 221 x 165 x 95 mm (h. / Br. / D.); 1.5kg
Block Device Reset: 126 x 90 x 30 mm (height / width / depth); 0.2kg (account code execution), 0.5kg (desktop version), 0.5kg (waterproof version)
Volume: More than 75 dB
Alarm Unit: 126 x 90 x 30 mm (h. / Br. / D.); 0.2kg (account code execution), 0.5kg (desktop version)
Detection Method: 4-element passive infrared motion sensor and pulse Doppler microwave motion sensor
Unit, Motion Sensor: 115 x 61 x 37.5 mm (height / width / depth); 120g (without attachment); work = 26mA / block while waiting = 17mA / unit (12V DC)
Detected Angle: 120° ~ 150°
Detection Range: 15m (standard)
