- Model: Samyung N500
- Size: 140 mm(H) x 190 mm(W) x 81.3 mm(D)
- Display: Wide 5”, TFT color, 800 x 480 pixels
- Supply Voltage: 10 to 32 V DC
- Operating Temperature: -10℃ ~ 50℃
- Alarms: Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate, low battery, low fuel (optional), loss of DGPS fix, radar guard zone, dangerous AIS vessels
- Chart/User Card: NAVIONICS® GOLD / Micro SD Card
- Waypoints: 10,000 waypoints (Event Mark: 48, Mark Color: 16)
- Routes: 100 Routes, with up to 100 points each
- Tracks: By time or distance, 10 tracks of 15,000 points
- Chart Datums: 216 Chart datums
- Chart Scale: 0.2 ~ 500 nm
- Interface: NMEA 0183 (2 ports)
- Frequency: 200 KHz
- Output: 300 W
- Depth Range: Min: 0 m ~ 3 m, Max: 0 m ~ 1500 m
- Color Display: 16 colors
- Brightness: 10-step
- Screen Moving Speed: Super fast, fast, medium, low, stop
- Battery Voltage Display: Voltage number display
- AUTO GAIN Adjustment: OFF/ON
- A-Mode Display: OFF/ON
- Demo Display: OFF/ON
- STC: 0% ~ 75%

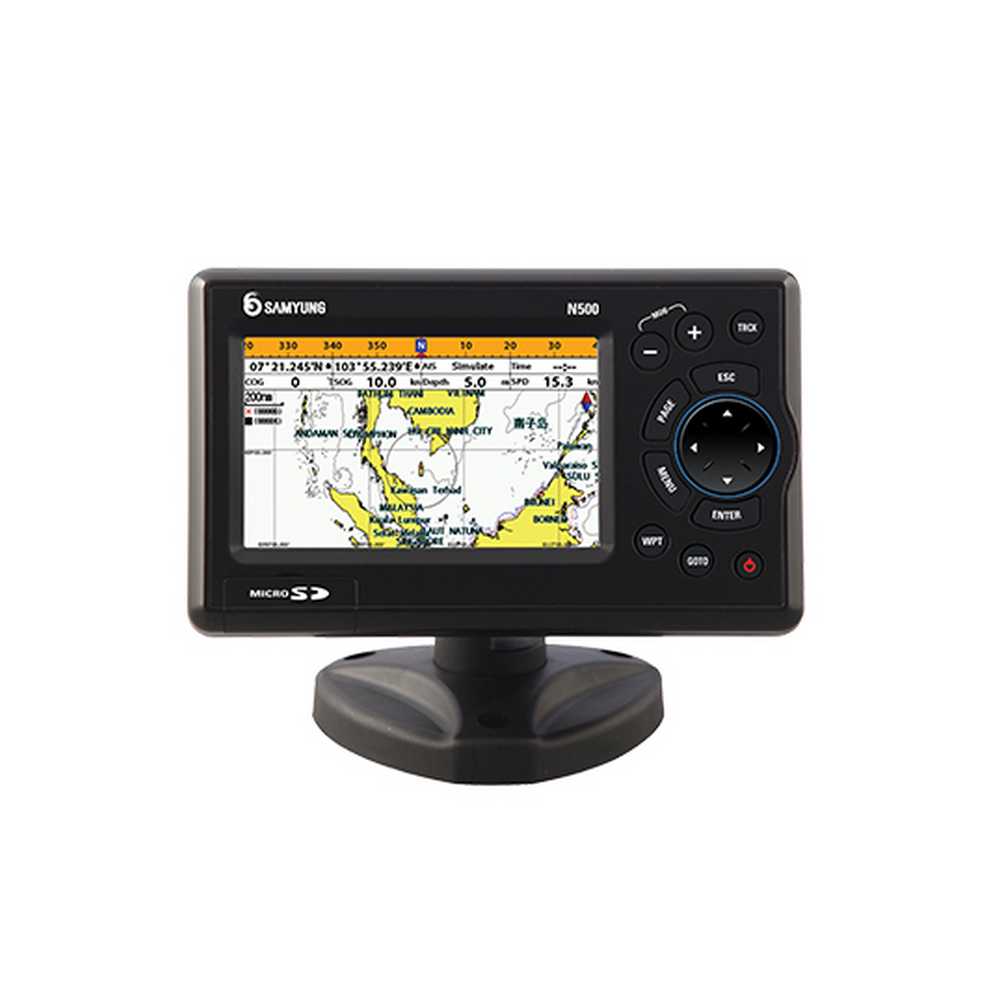

N500 GPS Plotter+ Fish Finder (Wide 5″)
Request a quote for latest pricing
Features:
- Wide 5″ High resolution TFT LCD
- Fast screen response by high performance CPU
- 10 steps adjustable LED backlight
- Multiple languages available including English, Chinese, Russian, Thai, Malay, etc.
- 128MB internal memory and built-in standard Samyung chart
- DGPS (WAAS, MSAS, EGNOS)
- User-friendly operation type with icons for each menu
- NMEA 0183 interface (AIS, NAVTEX, DSC, etc.)
- 4 split screens (Chart, Data, Highway, etc.)
- Suitable for small fishing boats
- Single (200 kHz, 300W) & dual (50/200 kHz, 600W) frequency for detecting small and individual fish
- Easy to use with auto gain
