- Static compass accuracy: 1° RMS when level
- Dynamic compass accuracy: 2° RMS
- Heading display resolution: 0.1°
- Settling time: 1 min
- Heading data output update rate: 10Hz
- Rate of turn range: 0°-70°/sec
- Rate of turn data output update rate: 2Hz (adjustable up to 0-10Hz)
- Pitch and roll range / Display resolution: ±50° / 0.1°
- Static / Dynamic pitch and roll accuracy: <1° / <3°
- Pitch and roll alignment: Yes (with software)
- Pitch and roll data output update rate: 2Hz (adjustable up to 0-10Hz)
- Transmission speed: 4800bps (adjustable with software)
- Output term: Max velocity (automatic)
- Sentence: HDT, RMC, ROT, ATT (default) / DTM, GGA, GLL, GSA, GSV, HDG, VYG, ZDA (optional)
- Satellite tracked / Type of tracking satellites: 56CH / GPS, SBAS, QZSS
- GPS data output update rate: 1Hz
- GPS cold and warm start acquisition: 29 secs
- Power supply: DC 12V – 24V / <90mA (@DC12V)
- Humidity / Vibration: 95% (40°C) / IEC60945
- Operating / Storage temperature range: -25°C to 55°C / -30°C to 70°C

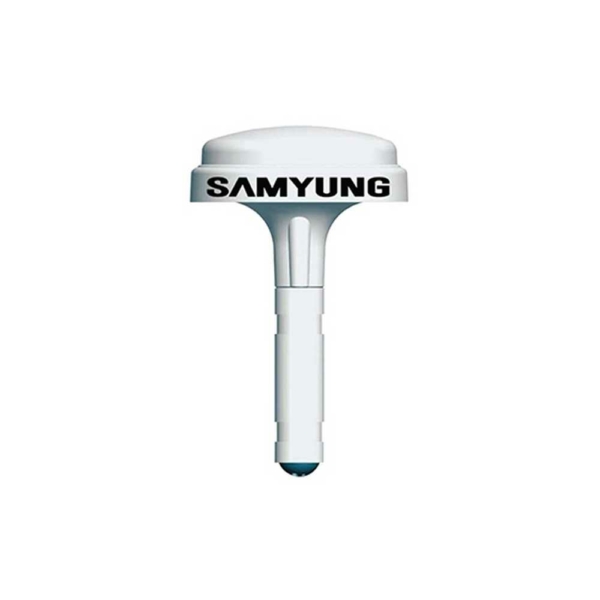

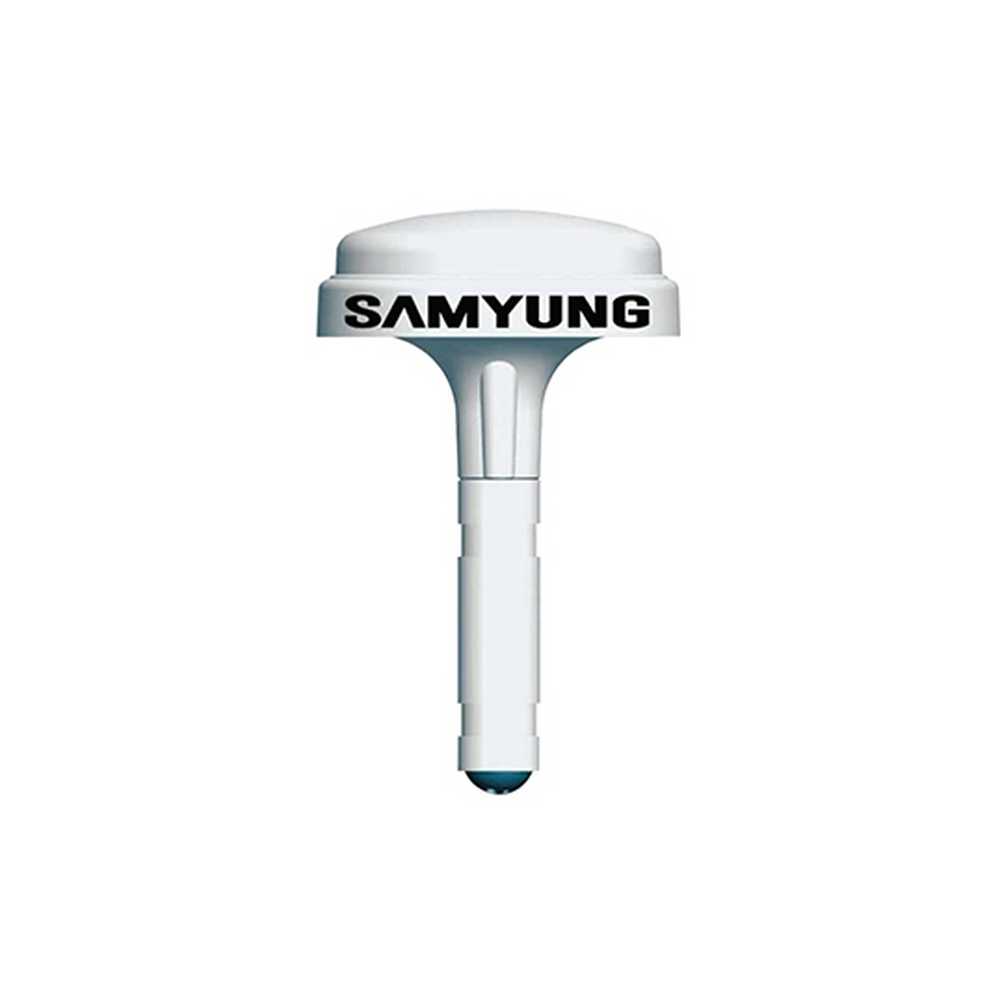

- SEC-730 Electronic compass
- Manual
- Installation kit
