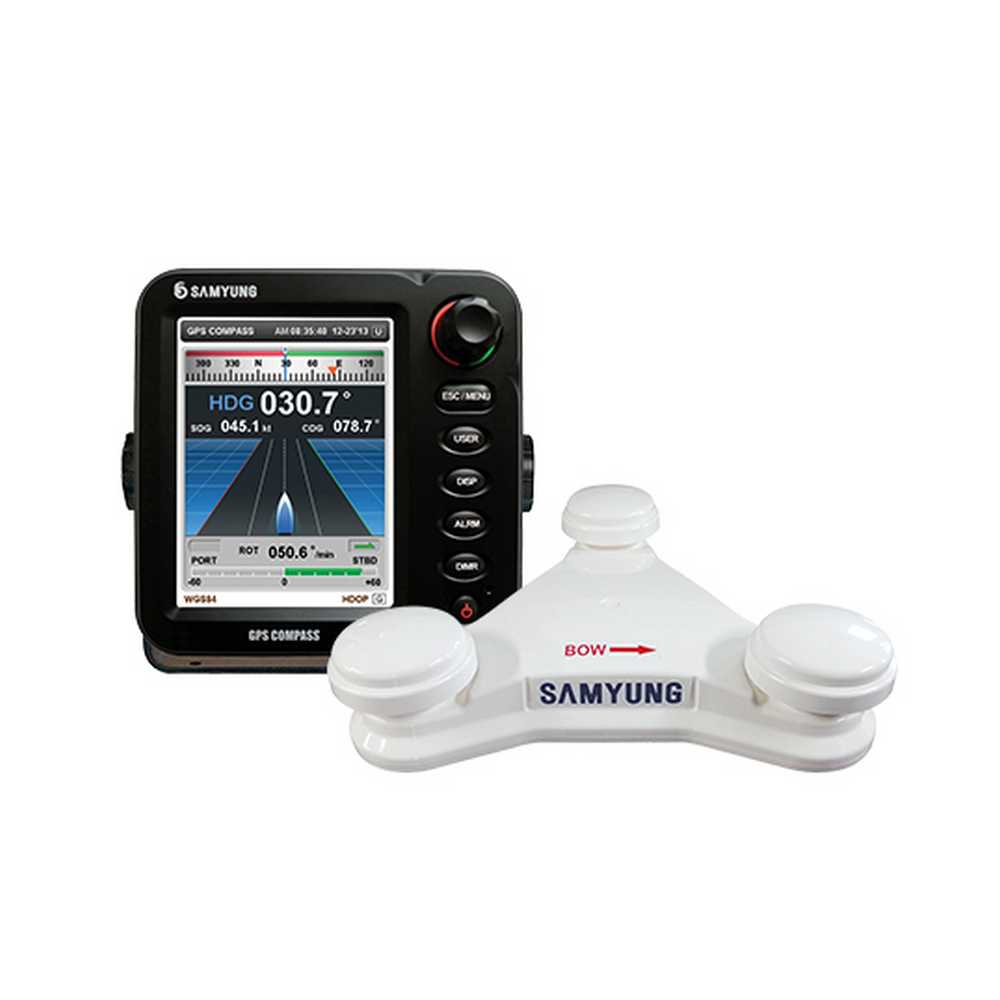

System SGC-750 for the remote transmission of the true course of the vessel. It is developed on the basis of GNSS GPS and consists of the SGC-750A antenna, display, and SGC-750D CPU SGC-750P.
The principle of operation is based on calculating the direction between the two antennas, which use GPS satellite signals. This defines the true course of the vessel. System SGC-750 allows simultaneous use of the output direction with radar, electronic chart system ECDIS, AIS, and autopilot.
If the GPS signal is lost, the received data comes from an internal gyro sensor. The antenna must be installed in a place where minimal interference to signal reception is expected.
The main features of SGC-750 are:
- The accuracy and reliability at a high level
- Settling time to 3 minutes
- High definition TFT display screen
- A choice of different screen modes
- Ease of maintenance and operation
- Compatible with SBAS
- Determination of coordinates with high precision
- The function of the exact size
System SGC-750 meets the requirements of ISO / FDIS 22090-3, IMO A. 694 (17), IEC 60945 (2002-08), and IEC 61162 (2000).
