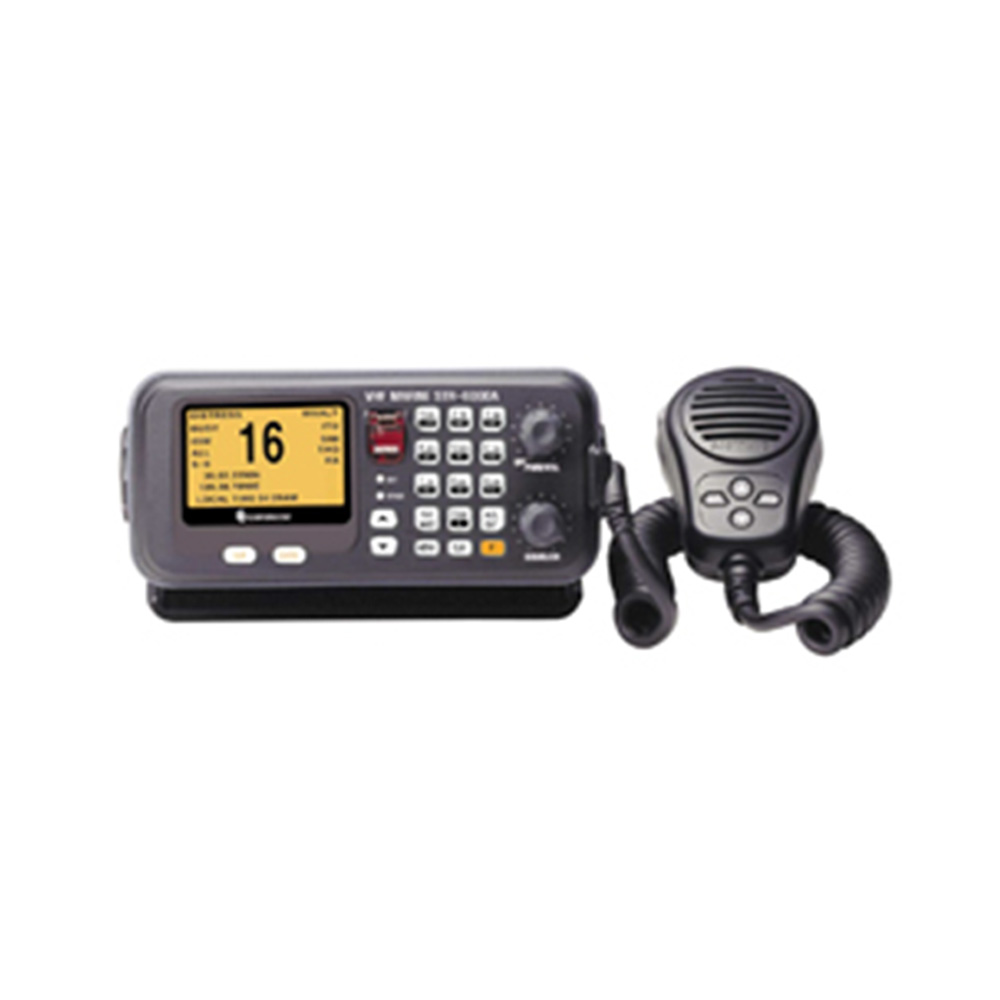

Samyung STR-6000A DSC/VHF Radio Telephone

• Generals:
• TX Frequency: 156.025~157.425MHz
• RX Frequency: 156.050~163.275MHz
• Communication Mode: Simplex and Semi-Duplex
• Channel Number: 183 channels (ITU 55, USA 57, CAN 61, WEA 10)
• Type of Emission: FM(16K0G3E), DSC(16K0G2B)
• Freq. Stability: ±10 ppm (-20°C ~ +60°C)
• Antenna Impedance: 50Ω
• Consumed Currency: TX high 5.5A max Audio 1.5A max
• Power Supply: DC 24V (DC 18 ~ 31.2V), AC 100 ~ 120V, AC 200 ~ 240V
• Transmitter Unit:
• Antenna Output: HIGH/25W, LOW/1W
• Starting Mode: SYNTHESIZER mode
• Modulation Mode: VARIABLE REACTANCE FREQUENCY MODULATION
• Occupancy Band Width: Within 16KHz
• Max. Freq. Deviation: ±5KHz
• Spurious Emission: Over 70dB
• MIC Input Impedance: 2㏀
• Receiver Unit:
• Receiving Mode: DOUBLE CONVERSATION SUPER HETERODYNE
• Receiving Sensitivity: 0.32㎶ (20dB SINAD), 0.22㎶ (12dB SINAD)
• Squelch Sensitivity: Less than 0.22㎶
• Spurious Emission: Less than -70dB
• Residual Noise Level: Less than -40dB
• Audio Output: 4.5W / 4Ω
• DSC Watch Keeping Receiver:
• Receiving Freq.: 156.525MHz
• Radio Wave Mode: G2B
• DSC Modulation Speed: 1200baud (Within 600Hz ±30×10⁻⁶ Freq.)
• DSC Modulation Mode: FSK
• DSC Modulation Quotient: Within m=2±10%
• Adjacent Channel Select: Less than 10⁻² Bit error rate
• Spurious Response: Less than 10⁻² Bit error rate
• Inter-Modulation Response: Less than 10⁻² Bit error rate
• Dynamic Range: Less than 10⁻² Bit error rate
