- Widescreen display with bright LED backlight
- Easy to use with simple, tablet-style touchscreen controls
- Compatible with Broadband 3G™/4G™ and Halo™ radar (GO7 and above)
- Supports a wide range of charts from C-MAP and more
- View and control your display from a compatible smartphone or tablet
- Built-in support for CHIRP sonar, StructureScan® HD imaging, or ForwardScan™ sonar: just add a compatible transducer
- Works with the WM-3 SiriusXM satellite weather module (GO7 and above, North America only)
- Supports SteadySteer™, an autopilot performance enhancement for NAC-2 and NAC-3 autopilot computers fitted with RPU drive pumps
- Compatible with a CZone® digital switching device, enabling control from the MFD via the NMEA 2000 network
- Mercury® Smart Tow® enabled for wake shaping
- ITC Lighting systems can be controlled with an ITC Lighting control bar
- Supports Honda ECO mode engine information
- Plan Position Indicator (PPI) and AIS enhanced interface capabilities (GO7 and above)
- Access to Chart and echosounder sources from other networked devices (GO12 only)

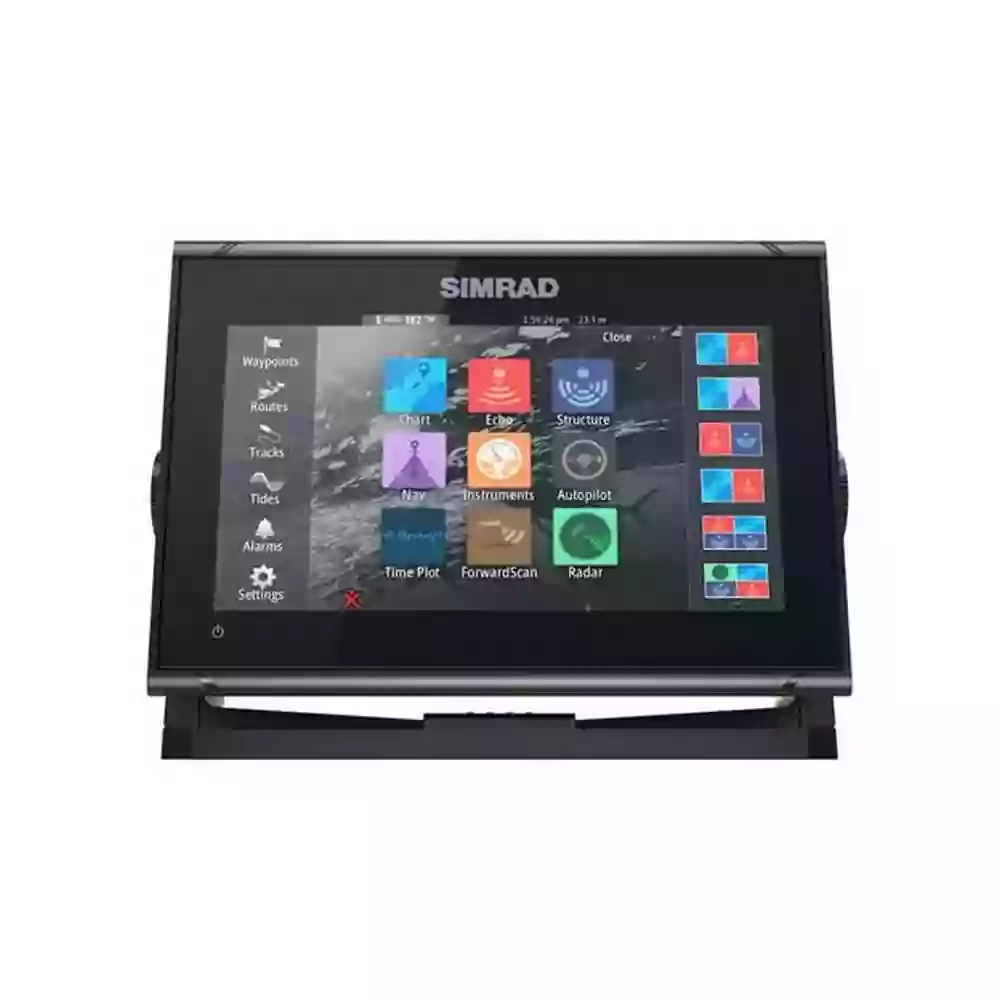

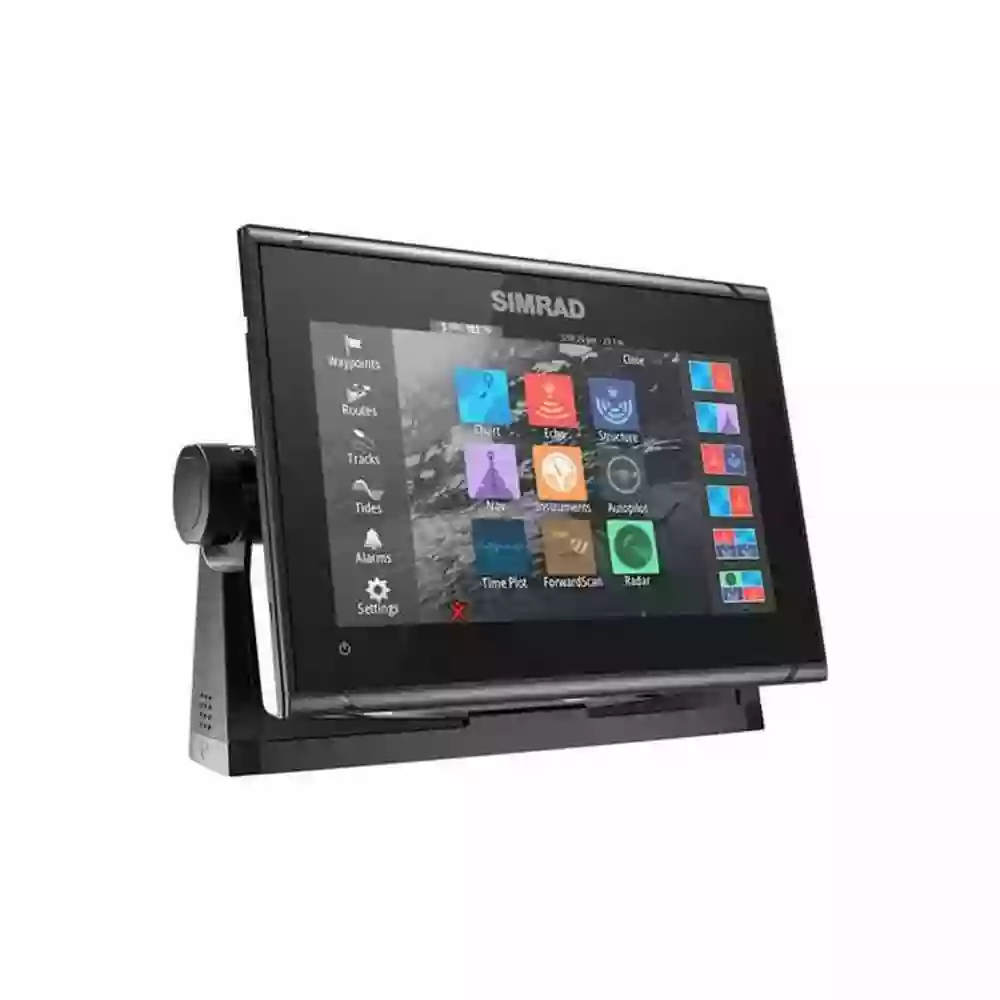

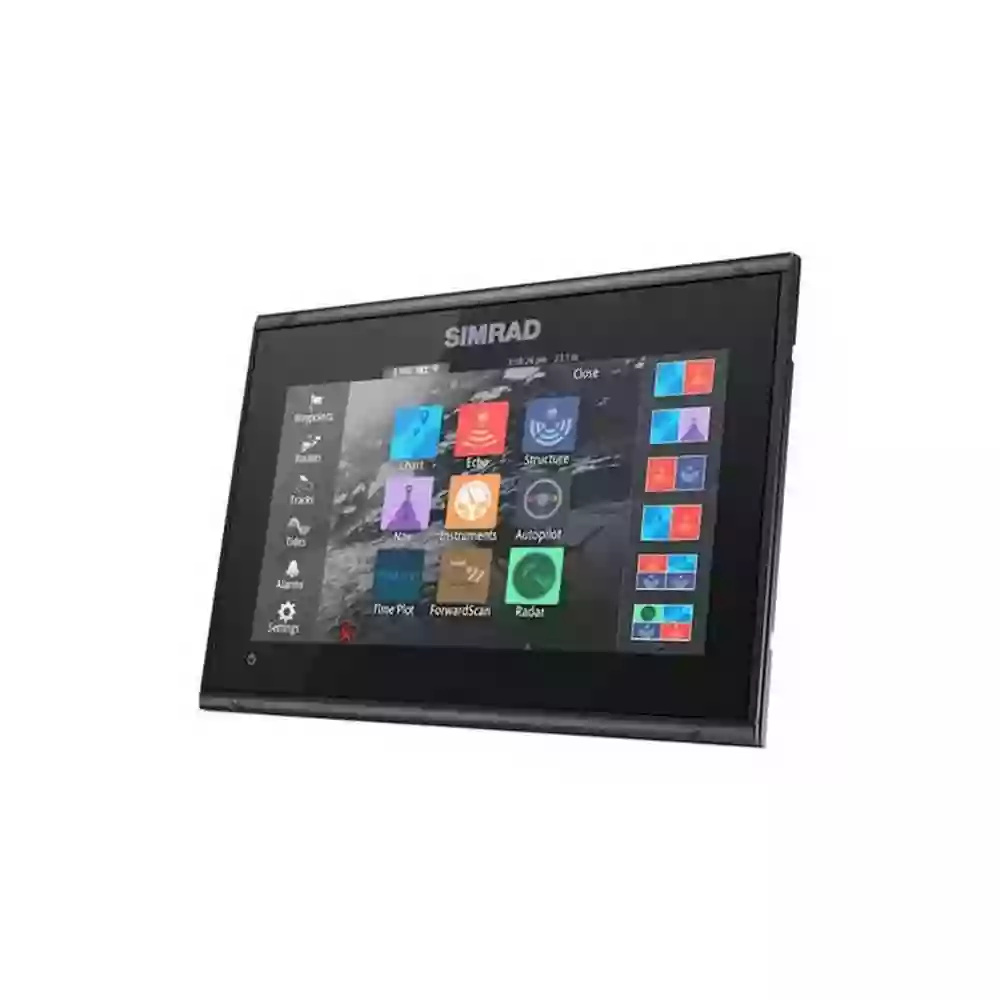

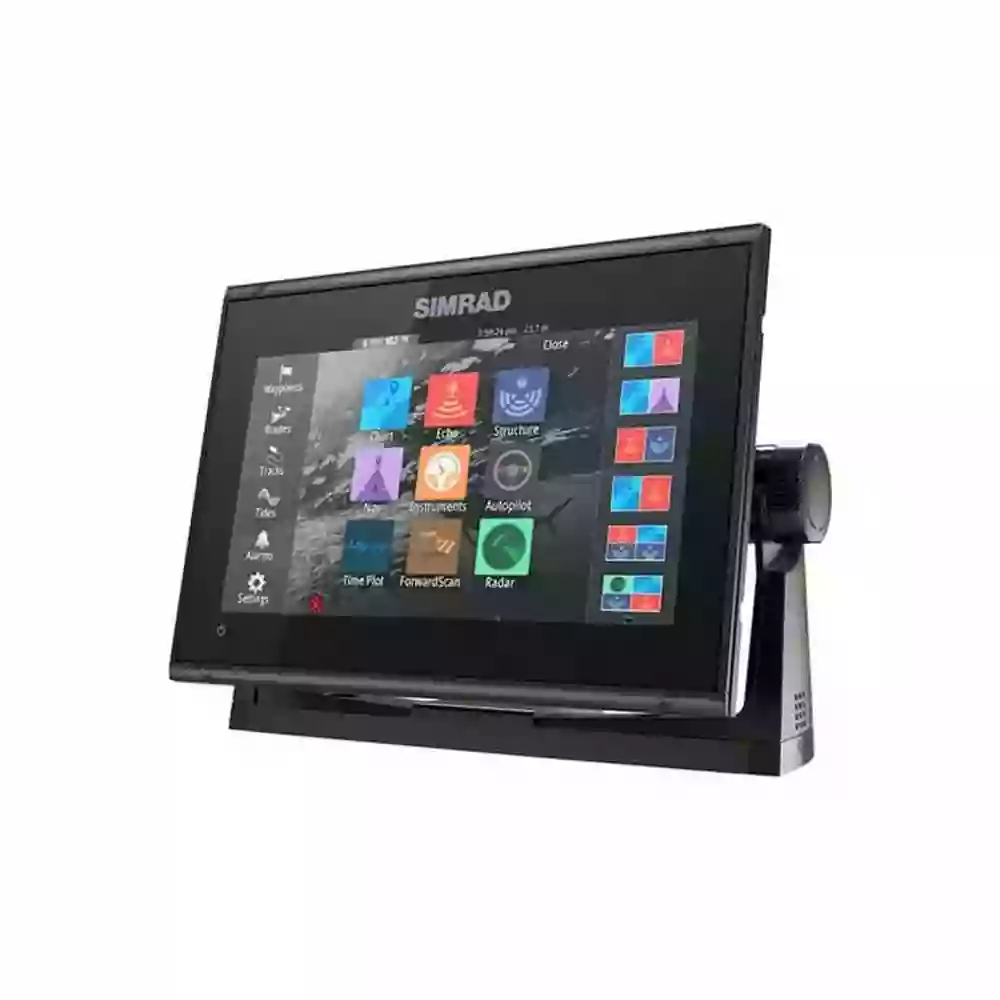

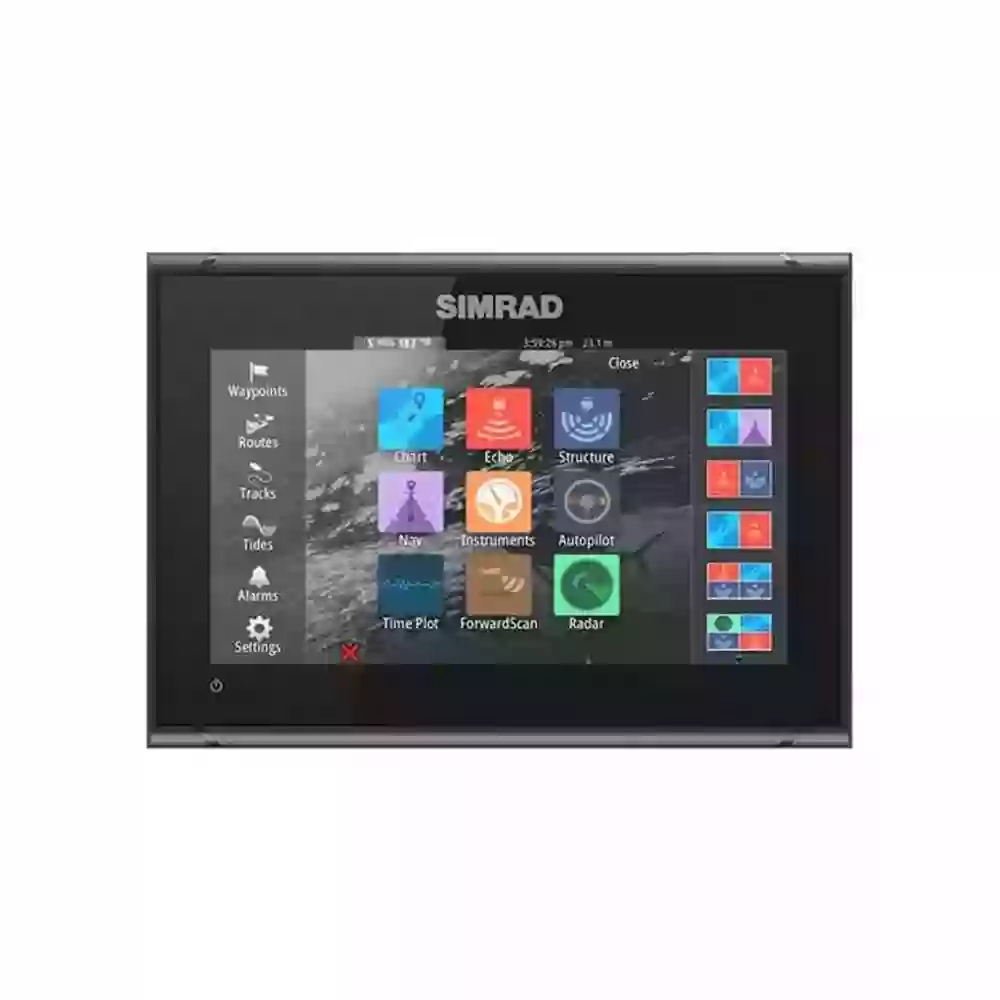

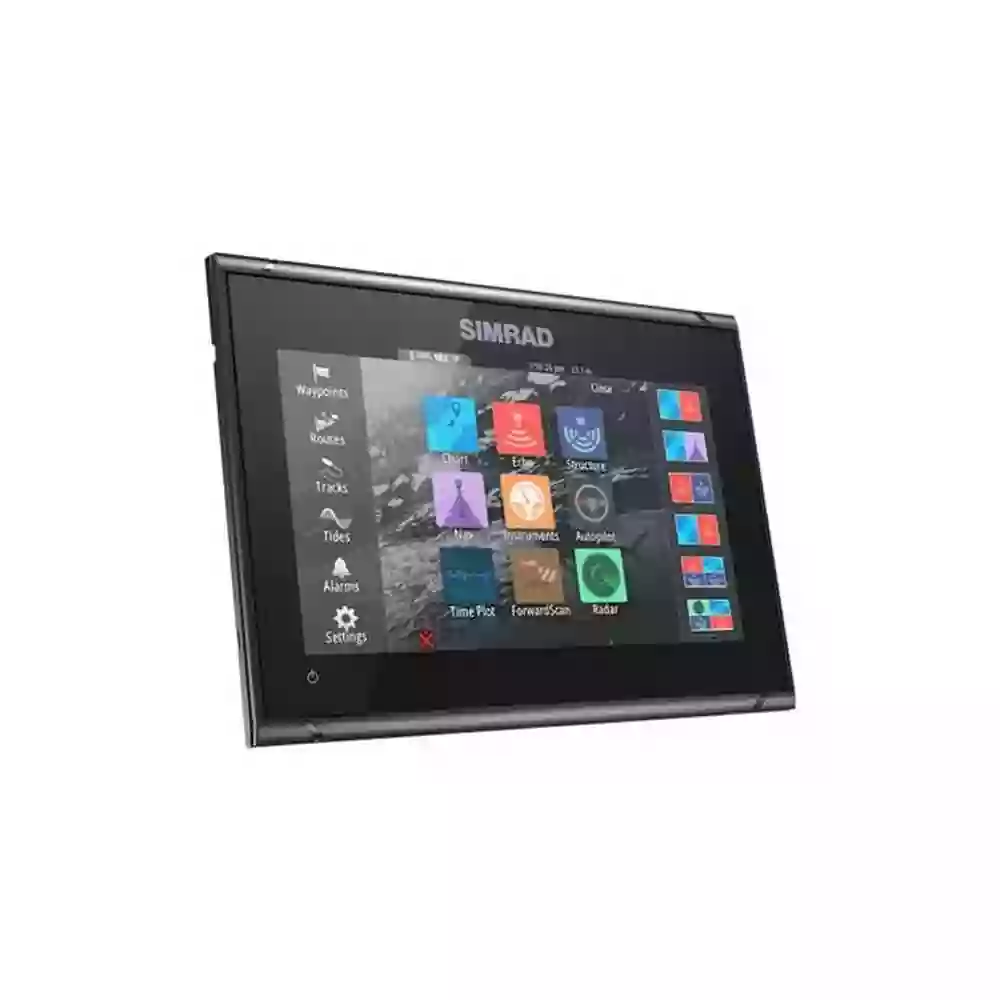

GO9 XSE display ( 000-14444-001)
Request a quote for latest pricing
Add GPS navigation, sonar support, radar capability, and much more to your boat with the GO9 XSE: perfect for sportboats, center-consoles, and smaller cruisers. Enjoy intuitive touchscreen control over a multitude of optional accessories, from autopilot to your on-board sound system. Take your display anywhere on board with wireless mirroring to smartphones and tablets.
- Display:
- Backlight Color: White
- Resolution: 800×480
- Brightness: 1200 nits
- Viewing Angles: 80° top/bottom, 80° left/right
- Physical:
- Dimensions (W x H x D): 243 mm x 171 mm x 83 mm (9.56″ x 6.71″ x 3.26″)
- Mounting Type: Bracket or Panel
- Weight: 1.315 kg (2.9 lbs)
- Electrical:
- Max Power Consumption: 20 W
- Typical Power Consumption: 12 W
- Recommended Fuse Rating: 3A
- Supply Voltage: 10 – 17 V DC
- Environment:
- Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
- Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Storage Temperature Range: -20°C to +60°C (4°F to 140°F)
- Waterproof Rating: IPX 6 and 7

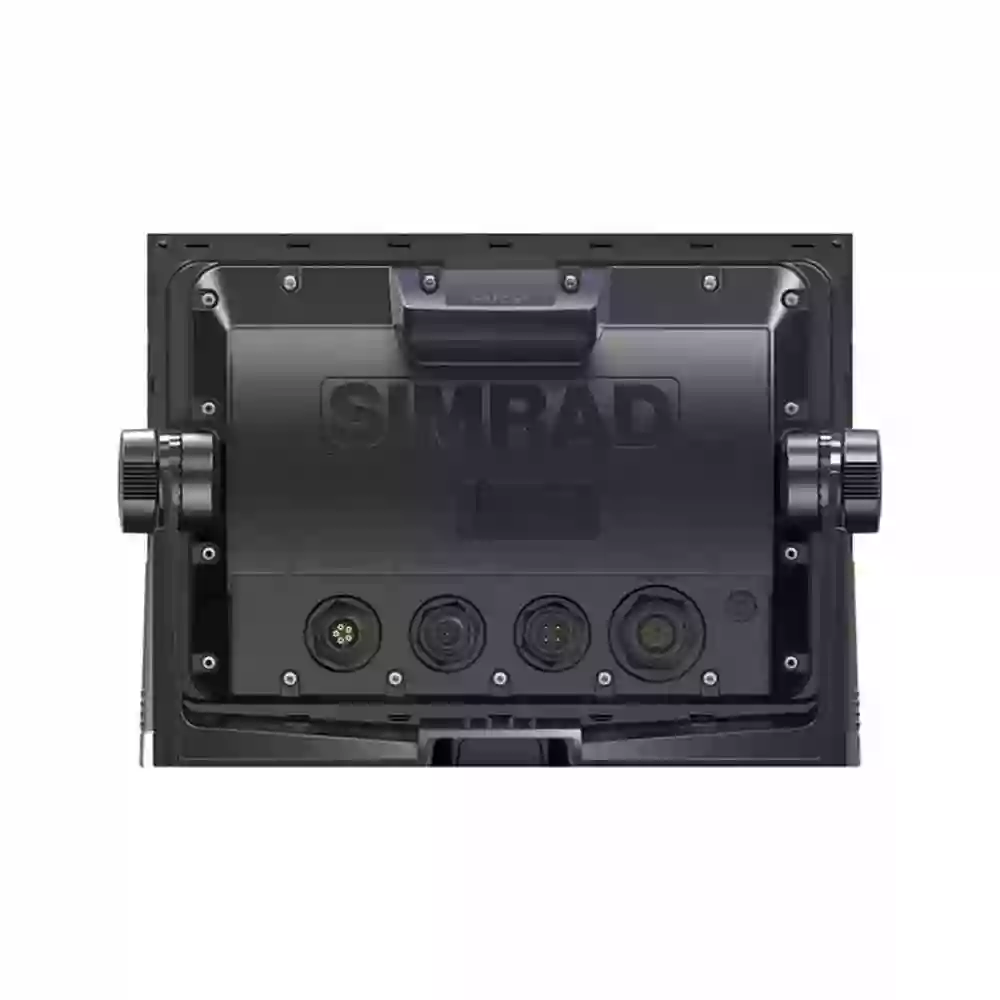

- Connectivity:
- Bluetooth: Internal
- Wi-Fi: Internal
- Ethernet Ports: 1 x 5 pin yellow connector (Radar and Sirius connectivity only)
- NMEA 2000 Connectivity: 1 x Micro-C port, 1 LEN
- PC Connectivity: None
- SD Card Storage: 2 Micro SD slots, max. 32GB each
- GPS:
- Correction: WASS, MSAS, EGNOS, GLONASS
- Receiver Channels: 32
- Position Accuracy: Horizontal Accuracy 3 m (9.8 ft.)
- Time to First Fix: Cold start less than 90 seconds
- Update Rate: 10 Hz
- Other:
- Interface: Touchscreen, OP40 or OP50 controller via NMEA 2000
- Languages: Extensive language support (list provided in original content)
- Bracket Knobs for NSS evo2/Zeus2/HDS gen2T
- Power Cable, 4-Pin
- Suncover for GO9 XSE
- GO9/Vulcan 9 Replacement Bezel
- GO9/V9 DASH MOUNT KIT
- Gimbal Bracket, NSS7 evo3, GO9, Cruise 9, Vulcan 9, Zeus³ 7
