IS42 Digital Display (000-13285-001)

Request a quote for latest pricing

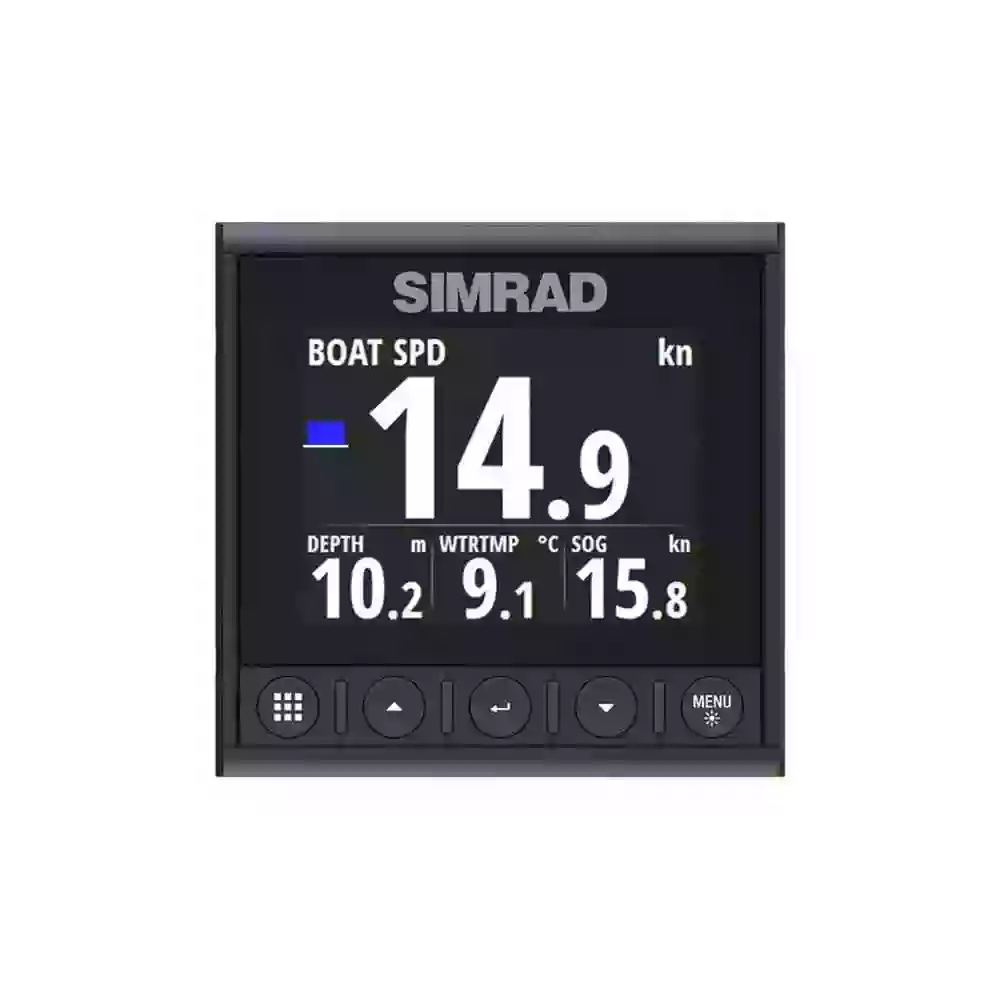

This multi-purpose instrument display features a colour screen that?s designed for optimal visibility in all conditions. See wind data, boat speed, depth, engine information, autopilot status, AIS data and more at a glance. Add an optional OP12 keypad, and the IS42 also offers full control of many Simrad autopilot systems.

Optically bonded 4.1-inch colour display: Reduces fogging and enhances visibility with transflective LCD technology.

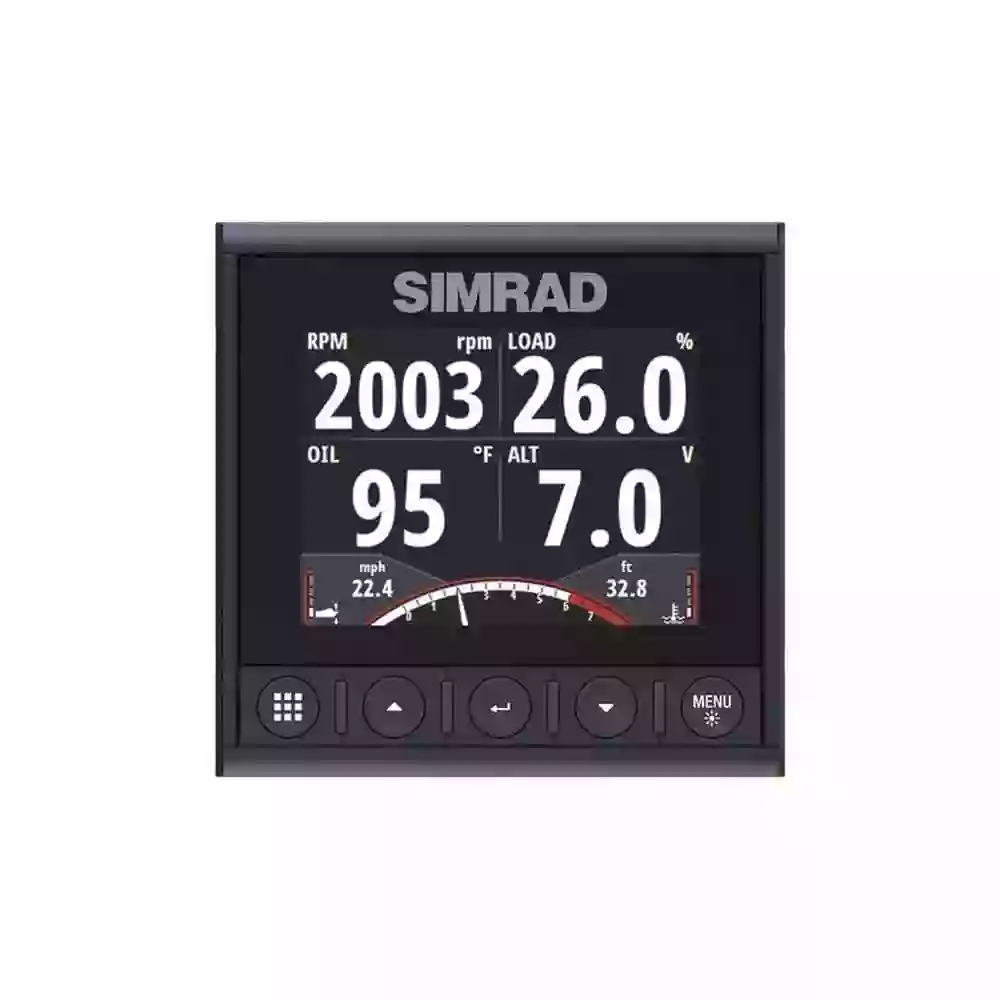

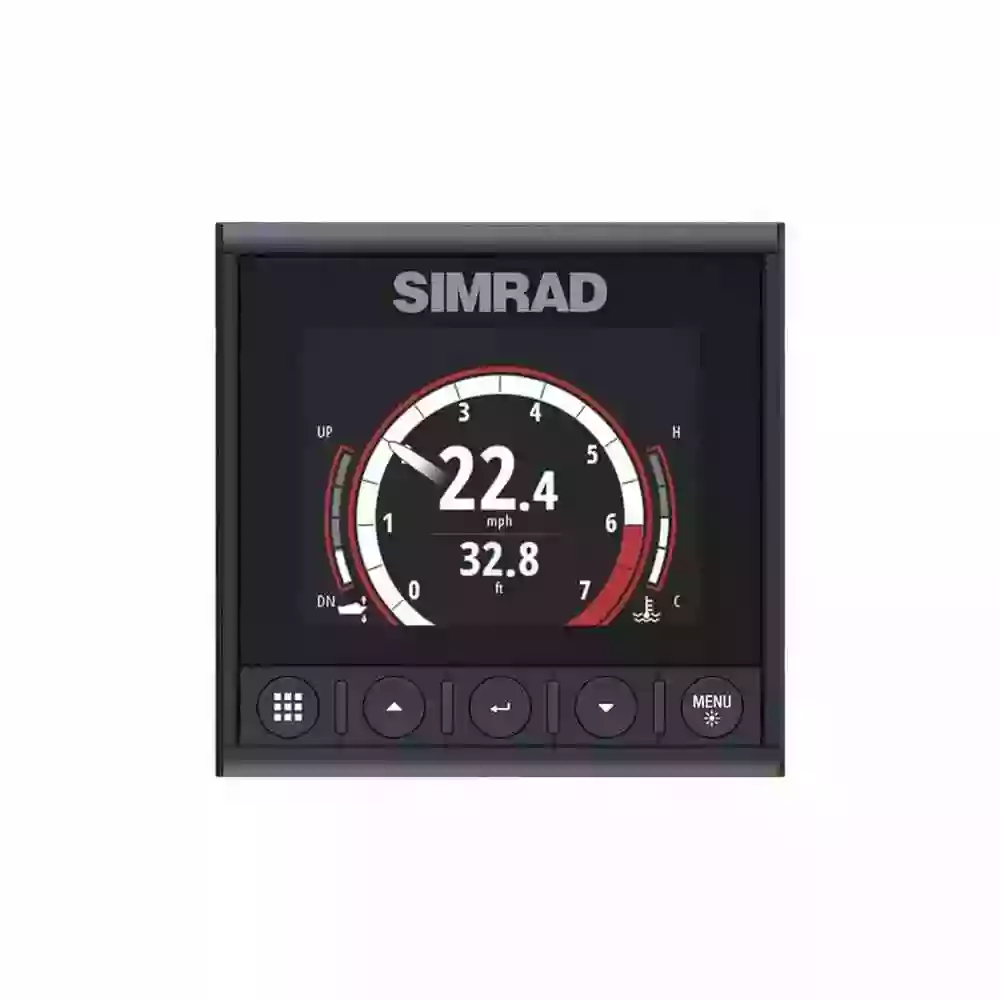

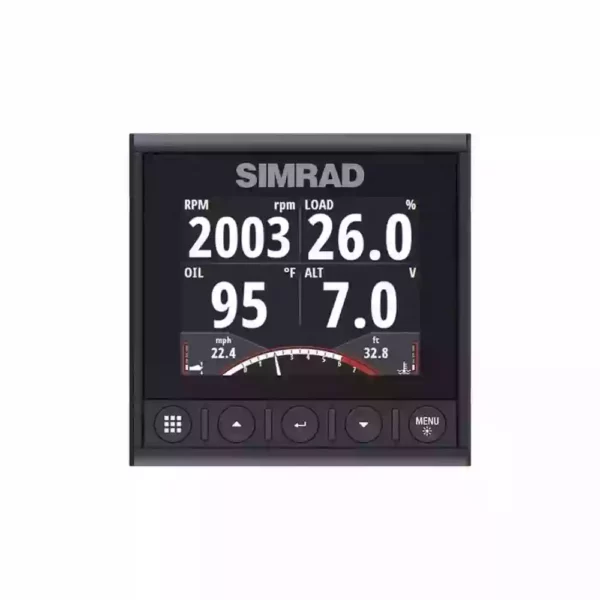

Display information: Wind, speed, depth, engine data, autopilot status, and more.

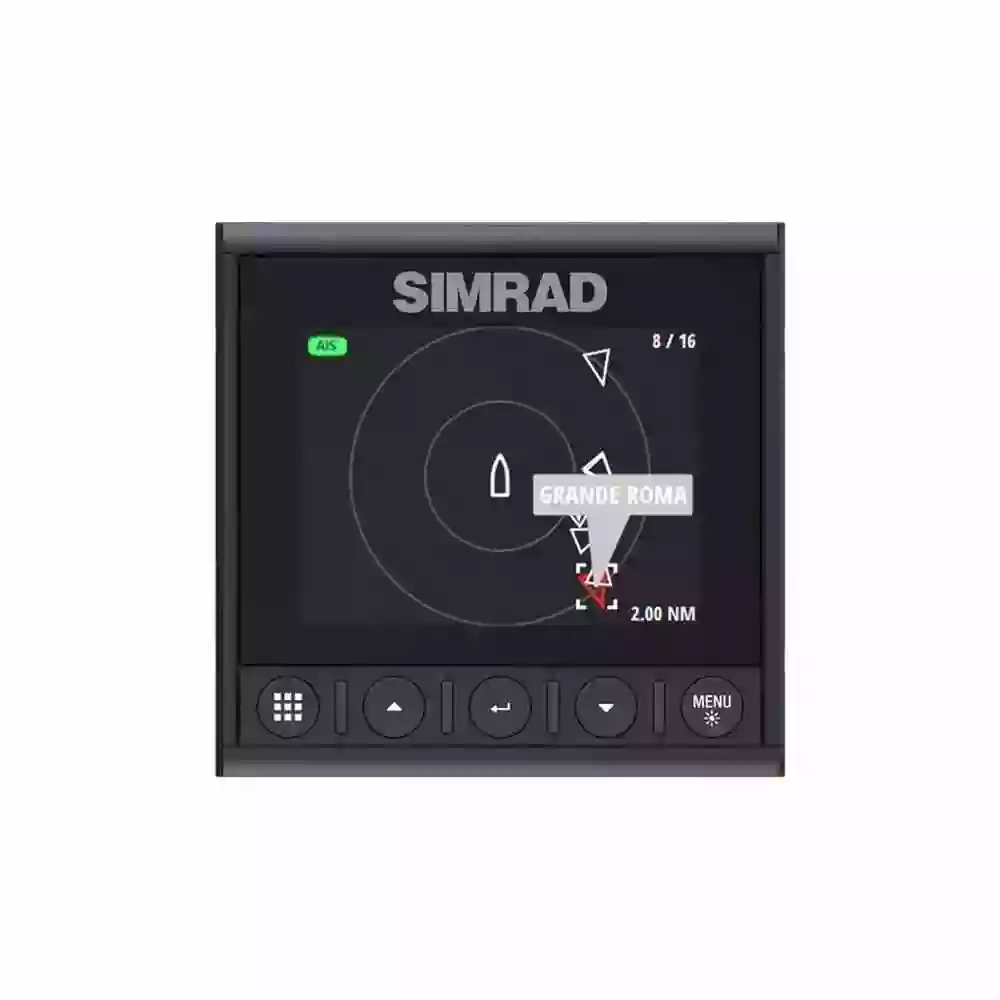

Advanced AIS functionality: Includes DSC calling to AIS-equipped vessels and customizable alarms.
Waterproof silicon keys: Ensures intuitive operation even in rough conditions.
Easy installation: Front-mount option with single-cable NMEA 2000® connectivity.
Optional OP12 keypad: Add for full Simrad autopilot control.
Design: Low-profile glass helm for a sleek look.

Display:
- Backlight Color: White, Red, Green, Blue
- Resolution: 320 x 240, 4:3
Physical:
- Compass Safe Distance: 300mm (1.0′)
- Dimensions: 118 x 115 x 37mm (4.6 x 4.5 x 1.4″)
- Mounting Type: Flush
- Weight: 0.32 kg (0.7 lbs)
Electrical:
- Power Consumption (max): 1.8W
- Power Consumption (typical): 1.4W
- Recommended Fuse Rating: 5A
- Supply Voltage: 12V DC (10-16V DC)
Environment:
- Humidity: Up to 95% RH
- Operating Temperature Range: -25 to +65ºC (-13ºF to +149ºF)
- Storage Temperature Range: -40 to +85ºC (-40ºF to +185ºF)
- Waterproof Rating: IPx7
Connectivity:
- NMEA 2000 PGNs: Extensive list of supported PGNs
- NMEA 2000 Connectivity: 1 x NMEA2000 Micro-C port, 3 LEN
Approvals: IEC/EN 60945 compliant.
Interface: Keypad.
Languages: English, French, Spanish, German, Italian, Swedish, Croatian, Norwegian.
