NSO evo3S 16″ Display System Pack 000-15126-001

• iMX 8 Integrated six-core processor for superior performance
• Ultra-sharp, Full HD 16-inch display
• Seamless touchscreen control of your entire connected SIMRAD® system
• Low-profile glass helm styling
• Extended visibility with six-panel split screen option
• Connect with smartphones, tablets, and internet hotspots. Complete your ideal boat setup with the ultimate navigation system. NSO evo3S gives you 2x faster response times delivered through an iMX 8 high-performance processor. The Full HD gives you stunning clarity, and intuitive touchscreen and remote keypad controls help give you total control of your on-board electronics.

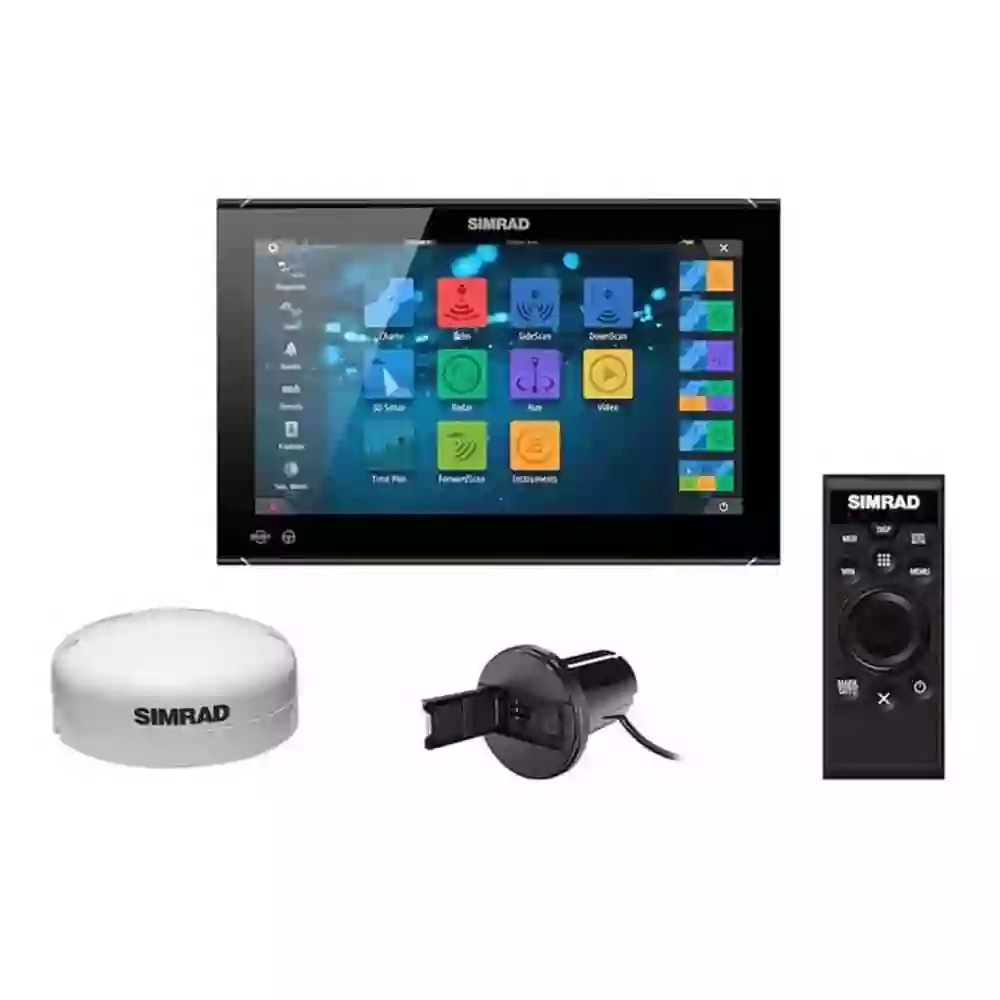

• Kit includes keypad, GPS antenna, and chart card reader
• Integrate with an extensive range of 3rd party technologies

• Display:
  • Backlight Color: White
  • Display Resolution: 1920×1080
  • Display Size: 16 inches
  • Screen Brightness: 1200 nits
  • Viewing Angles: 80° top/bottom, 80° left/right
• Physical:
  • Compass Safe: 50 cm (19.7″)
  • Dimensions W x H x D: 400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27″)
  • Weight: 3.9 kg (8.6 lbs.)
  • Mounting Type: Panel or Bracket mount (use optional heavy-duty bracket 000-13547-001)
• Electrical:
  • Power Consumption max: 40 W ± 4 W
  • Recommended Fuse Rating: 6 A @ 12 V DC
  • Supply Voltage: 10 – 32 V DC
• Environment:
  • Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
  • Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2 V1.4.1
  • Storage Temperature Range: -20°C to +60°C (4°F to 140°F)
  • Waterproof rating: IPX6 on the front (when panel mounted correctly with only the front exposed); Rear not waterproof

Download brochure for full specifications.
