- iMX 8 Integrated six-core processor for superior performance
- Ultra-sharp, Full HD 19-inch display
- Seamless touchscreen control of your entire connected SIMRAD® system
- Low-profile glass helm styling
- Extended visibility with six-panel split screen option
- Connect with smartphones, tablets, and internet hotspots

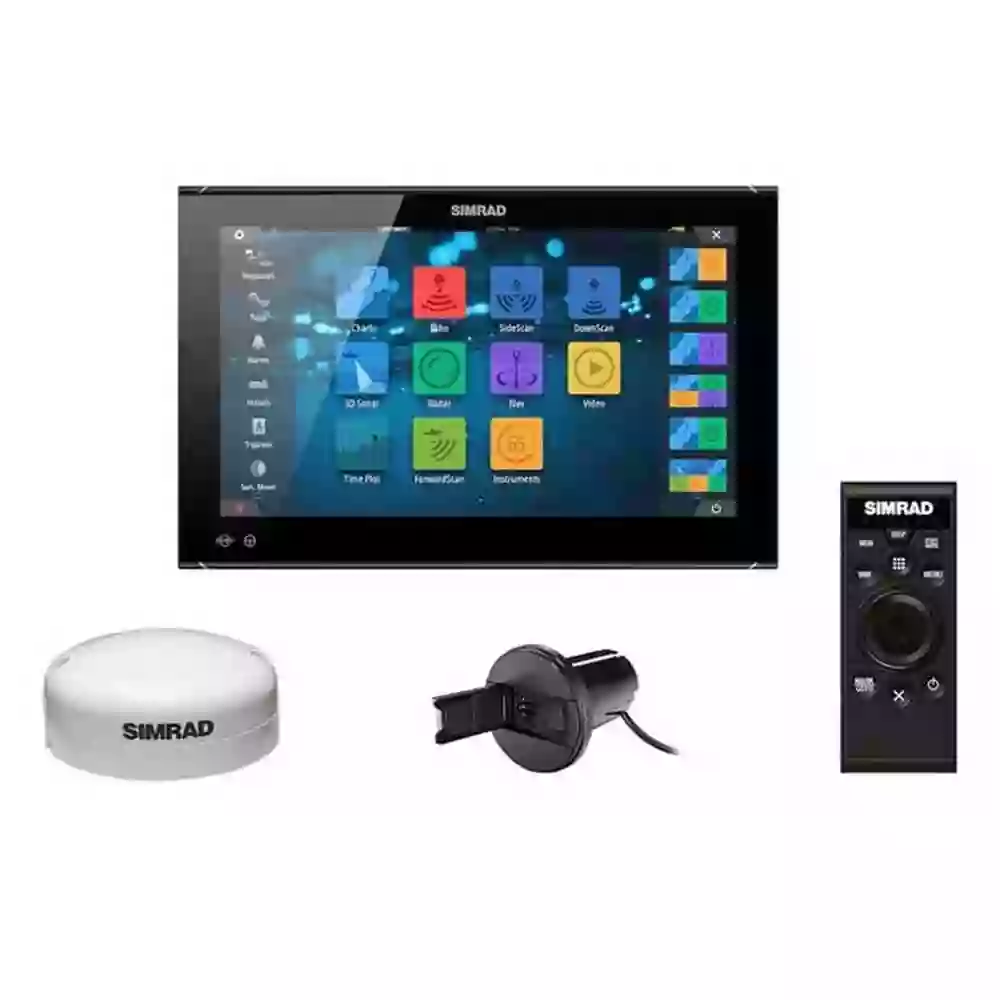

- Kit includes keypad, GPS antenna, and chart card reader
- Integrate with an extensive range of 3rd party technologies
NSO evo3S 19″ display System Pack (000-15127-001)
Request a quote for latest pricing
Complete your ideal boat setup with the ultimate navigation system. NSO evo3S gives you 2x faster response times delivered through an iMX 8 high-performance processor. The Full HD display provides stunning clarity, and intuitive touchscreen and remote keypad controls offer total control of your on-board electronics.
- Display:
- Backlight Color: White
- Display Resolution: 1920×1080
- Display Size: 19 inches
- Screen Brightness: 1200 nits
- Viewing Angles: 80° top/bottom, 80° left/right
- Physical:
- Compass Safe: 50 cm (19.7″)
- Dimensions W x H x D: 478.14 x 305 x 83 mm (18.8″ x 12″ x 3.3″)
- Weight: 4.81 kg
- Mounting Type: Panel or Bracket mount (use optional heavy-duty bracket 000-13547-001)
- Environment:
- Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
- Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2 V1.4.1
- Storage Temperature Range: -20°C to +60°C (4°F to 140°F)
- Waterproof Rating: IPX6 on the front (when panel mounted correctly with only the front exposed); Rear not waterproof
- NSO evo3S 19″ Display Only
- Label NSO19 evo3S System Pack
