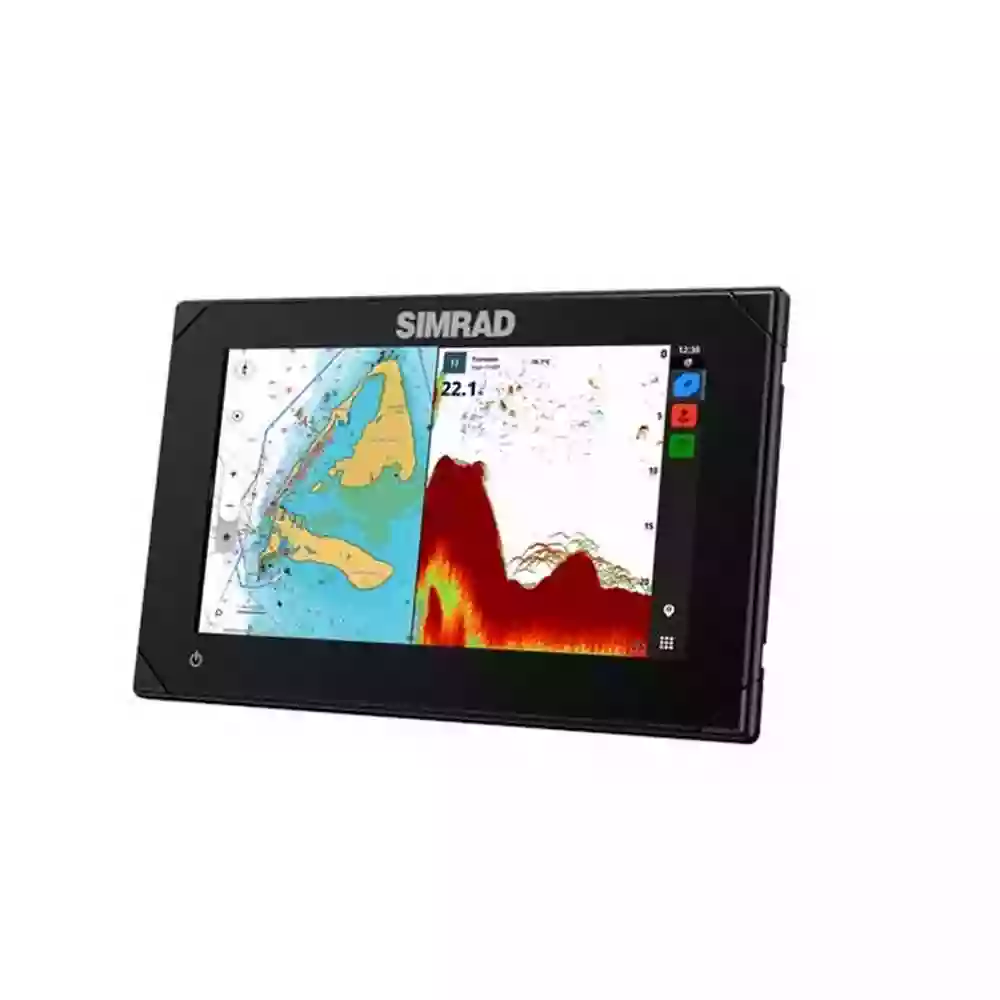

- Support for marine-optimized C-MAP® DISCOVER™ X and REVEAL™ X Charts featuring a fresh, intuitive chart presentation and daily updates
- High definition IPS touch screen with extreme viewing angles, even viewable through polarized lenses

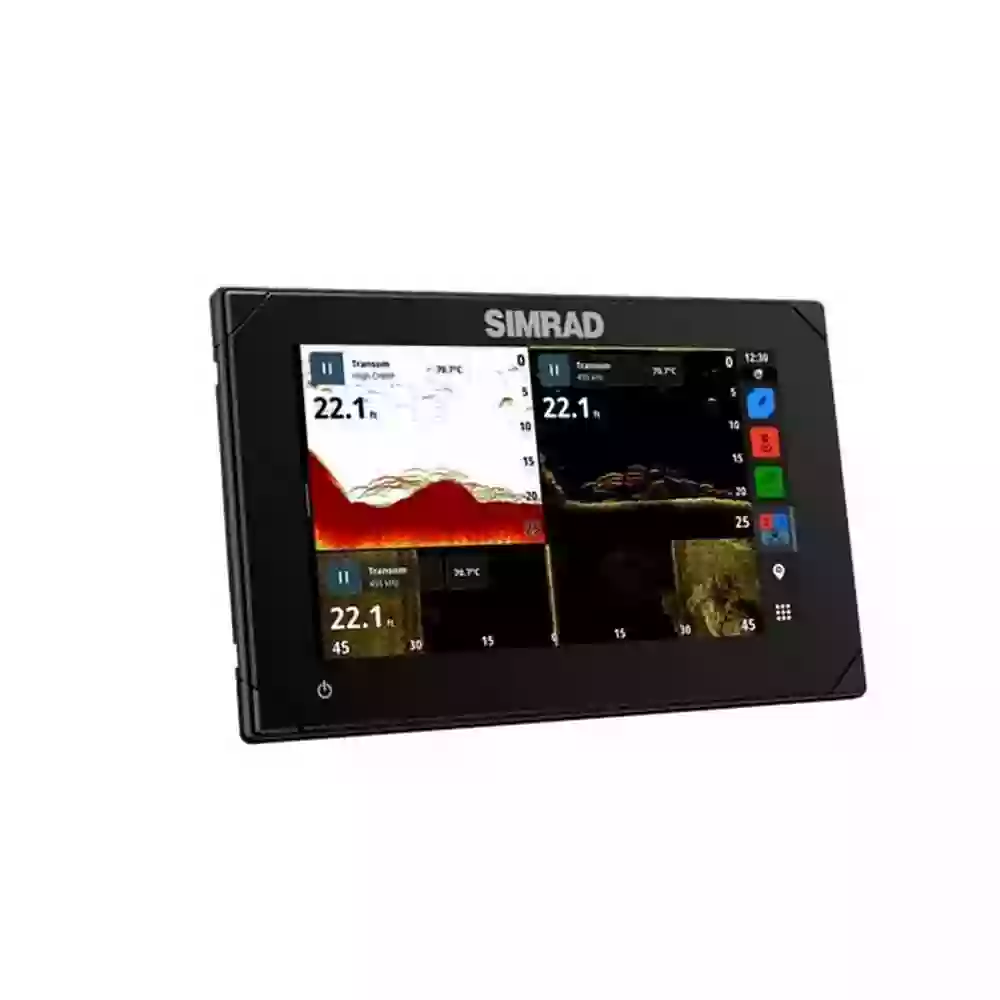

- Support for high resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan and DownScan Imaging™, plus 1kW transducer capability to reach greater depths
- Setup Wizard to get you up and running quickly, plus simpler sonar setup
- Full integration with capability to expand the system with Simrad® sonar, autopilot, radar, and more

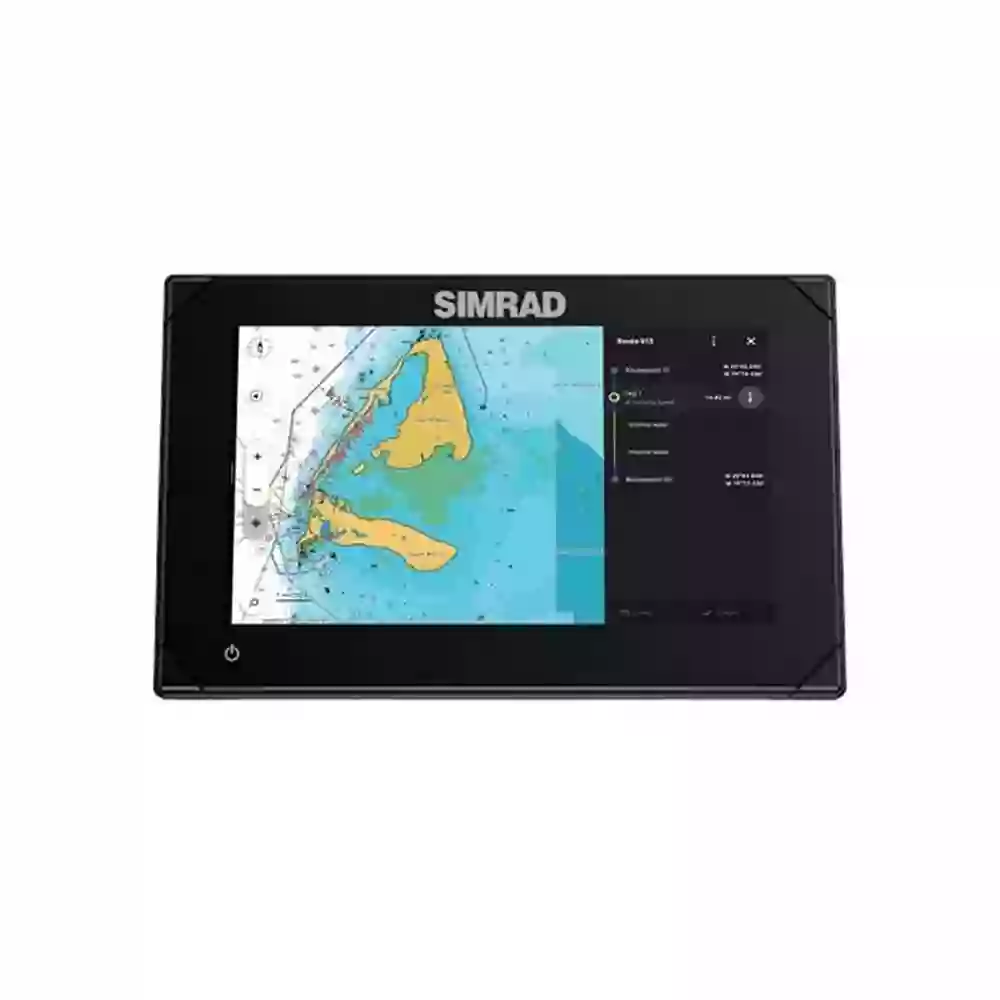

- Faster Autorouting with seamless accessibility
- See near and far simultaneously (up to 42nm), with HALO® Radar support and ultra-fast updates every second

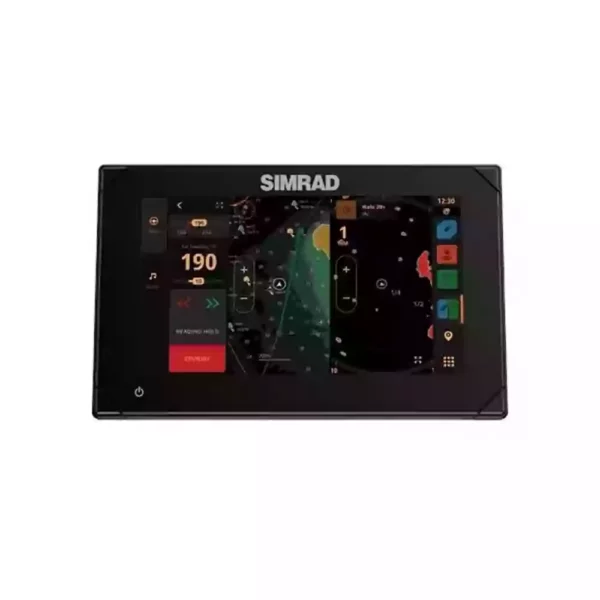

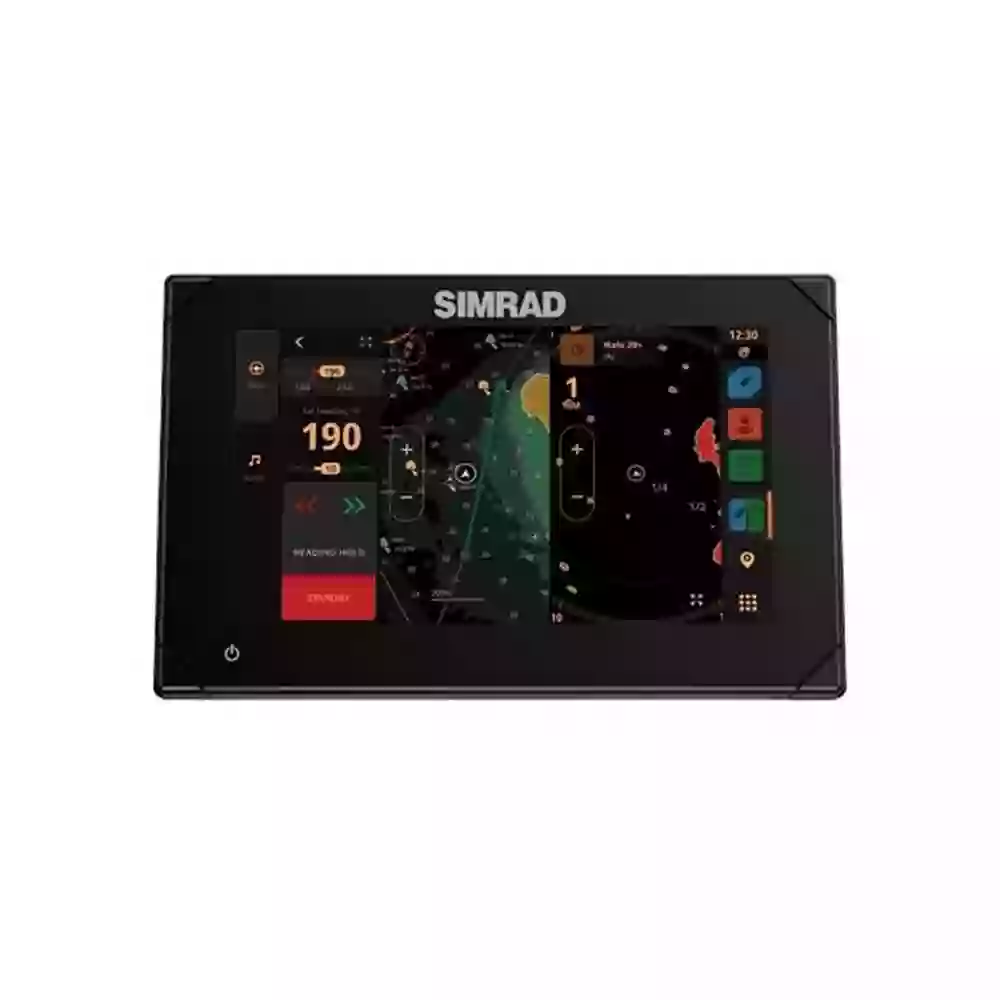

- Stay on course with full Simrad® autopilot integration

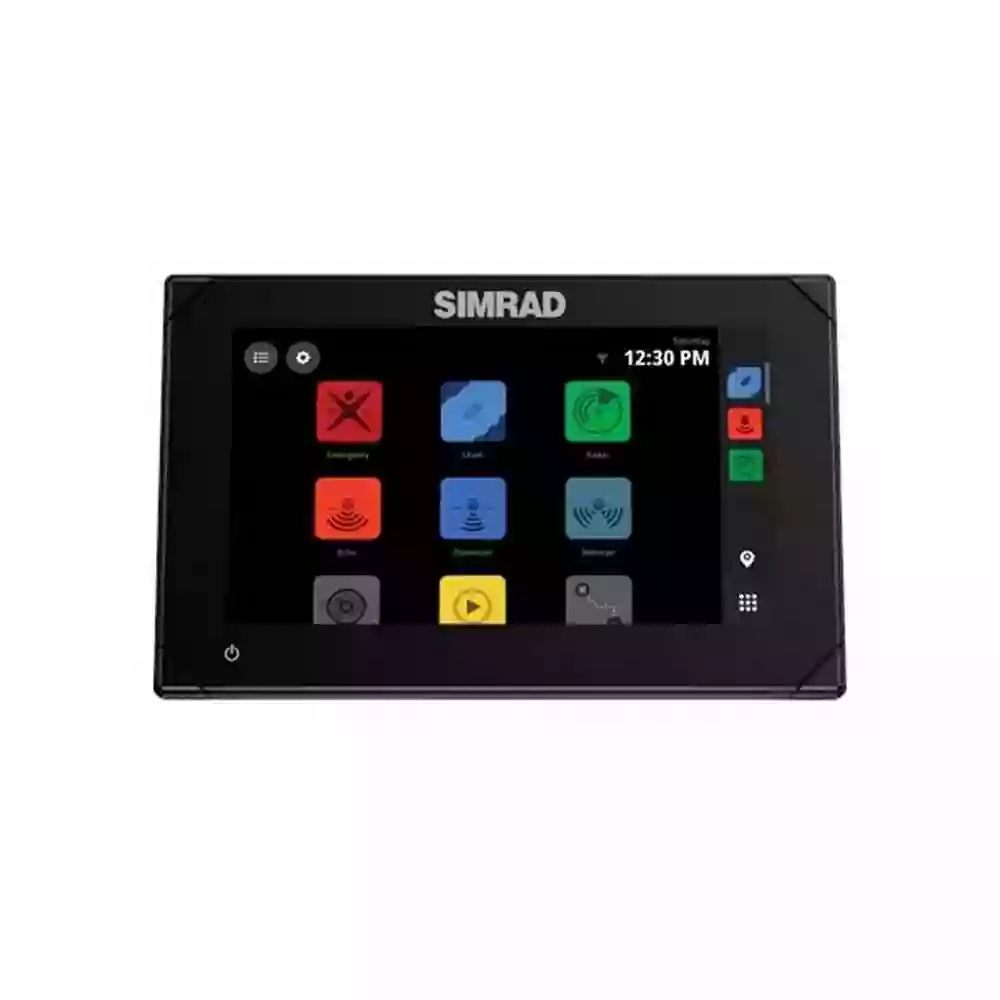

- Modern and straightforward interface
- Simrad® App integration – keep your chart data at your fingertips, both on and off the water
- Third-party app integration
- Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
- IP Video Support

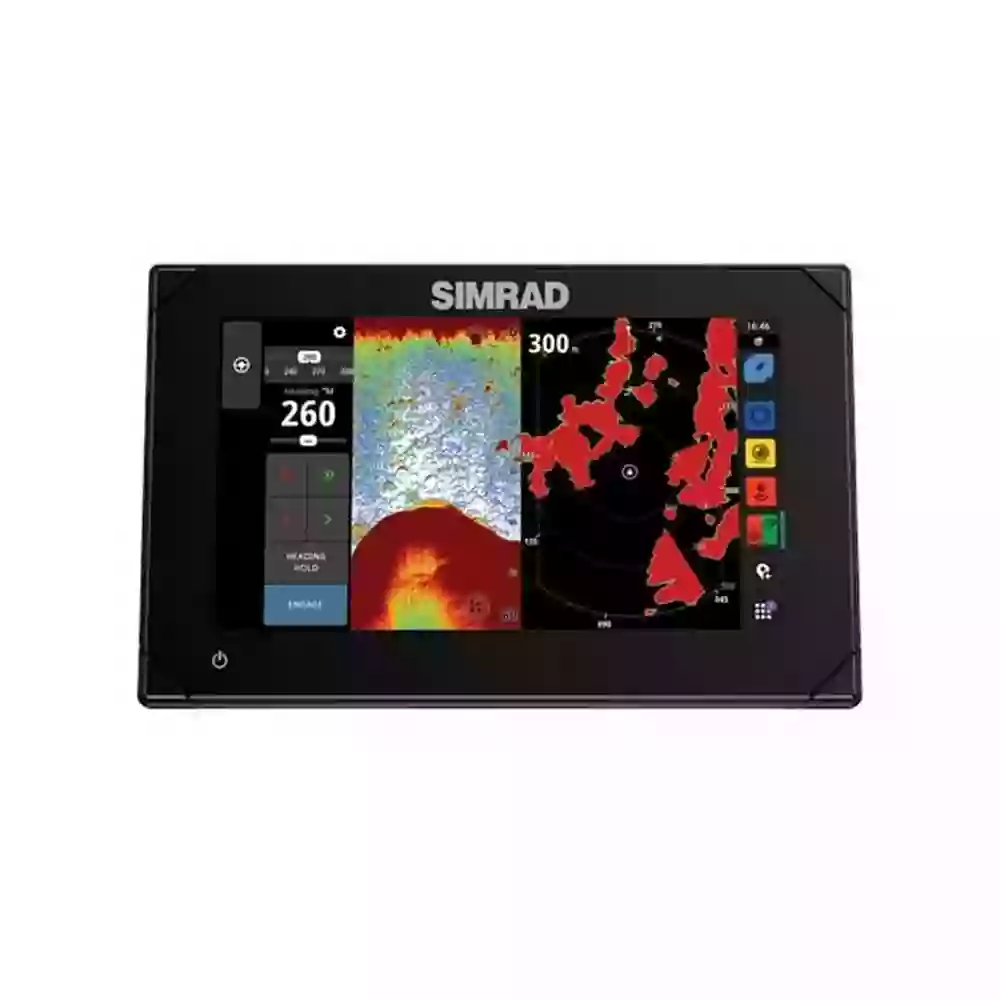

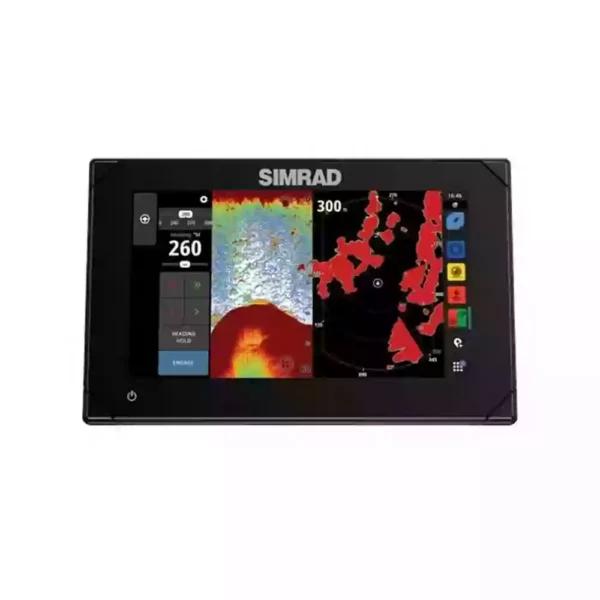

NSX 3007 display No Transducer ( 000-15215-001)
Request a quote for latest pricing
- Support for marine-optimized C-MAP DISCOVER X and REVEAL X Charts featuring a fresh, intuitive chart presentation and daily updates.
- High definition IPS touch screen with extreme viewing angles, even viewable through polarised lenses.
- Support for high resolution views of fish and structure with Active Imaging featuring CHIRP, SideScan and DownScan Imaging, plus 1kW transducer capability to reach greater depths.
- Setup Wizard to get you up and running quickly, plus simpler sonar setup.
- Full integration with capability to expand system with Simrad sonar, autopilot, radar, and more.
- Faster Autorouting with seamless accessibility.
- See near and far simultaneously (up to 42nm), with HALO.
- Radar support and get ultra-fast updates every second.
- Stay on course with full Simrad autopilot integration.
- Modern and straightforward interface.
- Simrad App integration keep your chart data at your fingertips, both on and off the water.
- Third-party app integration.
- Wireless connectivity, plus full Ethernet and NMEA 2000 networking capability.
- IP Video Support.
- Display
- Backlight Color: White
- Display Resolution: 1024 x 600 px
- Display Size: 7 inches
- Screen Brightness: >1200 nits
- Viewing Angles: 85° (top, bottom, left, and right)
- Physical
- Compass Safe: 50 cm (1.7 ft)
- Dimensions W x H x D:
- With bracket: W: 220.0 mm (8.66″) x H: 145.9 mm (5.74″) x D: 79.5 mm (3.13″)
- No bracket, no suncover: W: 195.0 mm (7.68″) x H: 123.0 mm (4.84″) x D: 79.5 mm (3.13″)
- No bracket, with suncover: W: 199.9 mm (7.87″) x H: 127.9 mm (5.04″) x D: 84.5 mm (3.32″)
- Mounting Type: Bracket (supplied), panel mount or flush mount
- Weight: 0.8 kg (1.7 lbs)
- Electrical
- Power Consumption max: 11.5 W (830 mA at 13.8 V)
- Recommended Fuse Rating: 2A
- Supply Voltage: 12 V DC (10 – 17 V DC min – max)
- Environment
- Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
- Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
- Shock Vibration: 100,000 cycles of 20 G
- Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
- Waterproof Rating: IPx6 and IPx7
- Connectivity
- Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 1 port (5-pin connector)
- Wi-Fi Connectivity: IEEE 802.11b/g/n
- NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- SD Card Storage: 1 MicroSD slot
- Video: IP Camera support
- MFD
- AIS: Receive AIS data over NMEA 2000
- Cartography included: World wide basemap (not for navigation)
- Digital Switching: Simrad command DDS only on release to market
- GPS: Internal, 10Hz, WASS, MSAS, EGNOS
- Sonar Compatibility: One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 kHz, HDI, Active Imaging
- Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points
- Cartography
- Charts Supported: C-MAP Tile (CMT) Discover X, C-MAP Tile (CMT) Reveal X
- Other
- Interface: Multi-touch screen
- Languages: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Swedish
