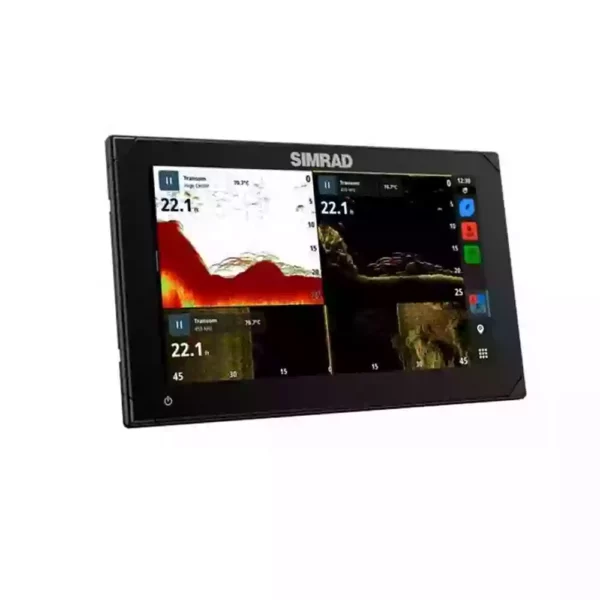

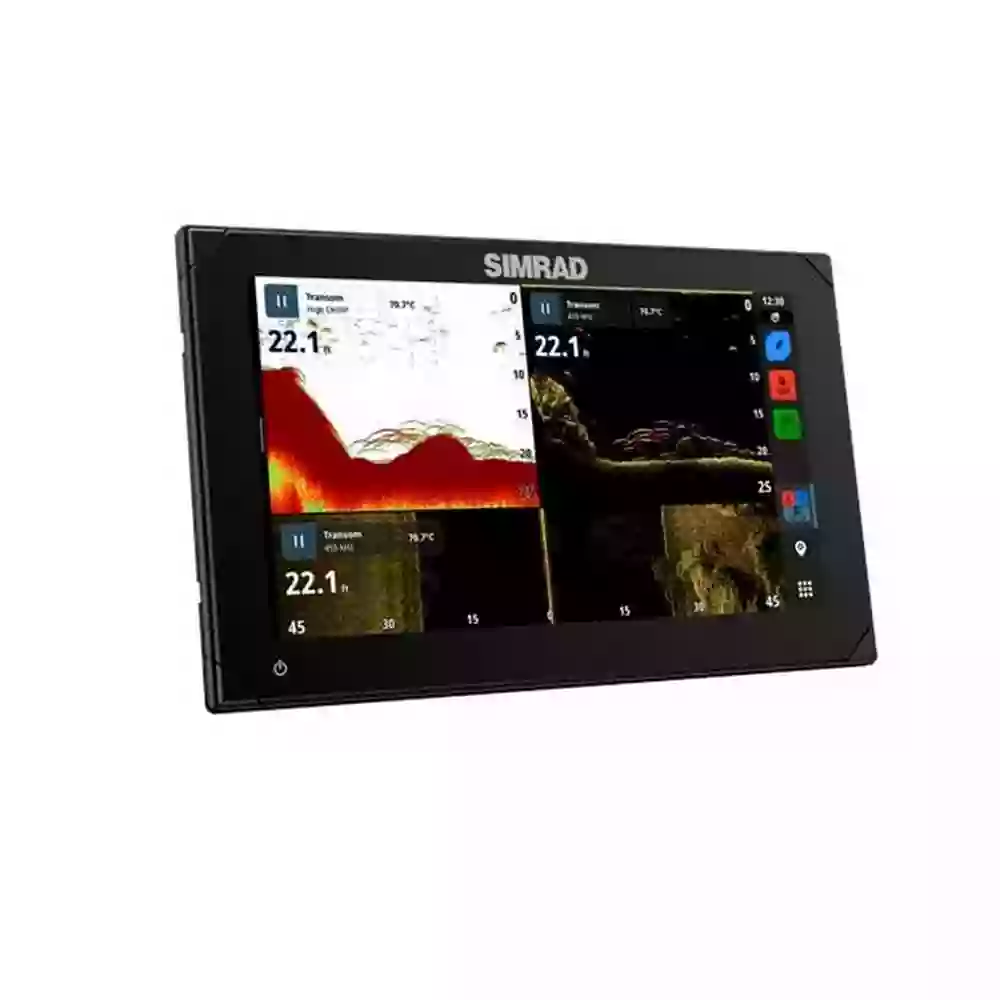

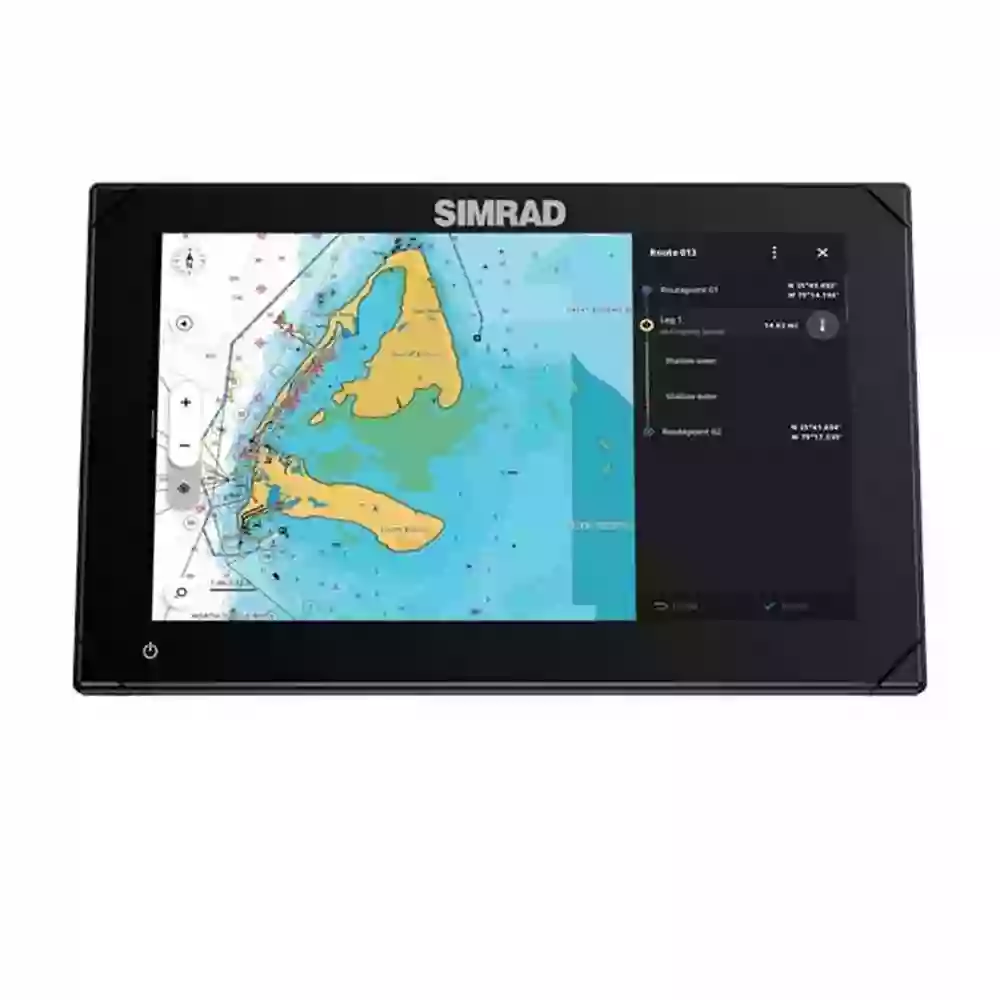

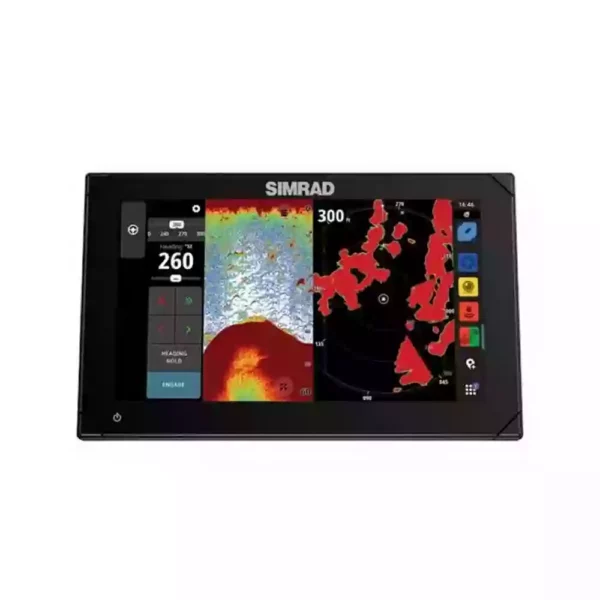

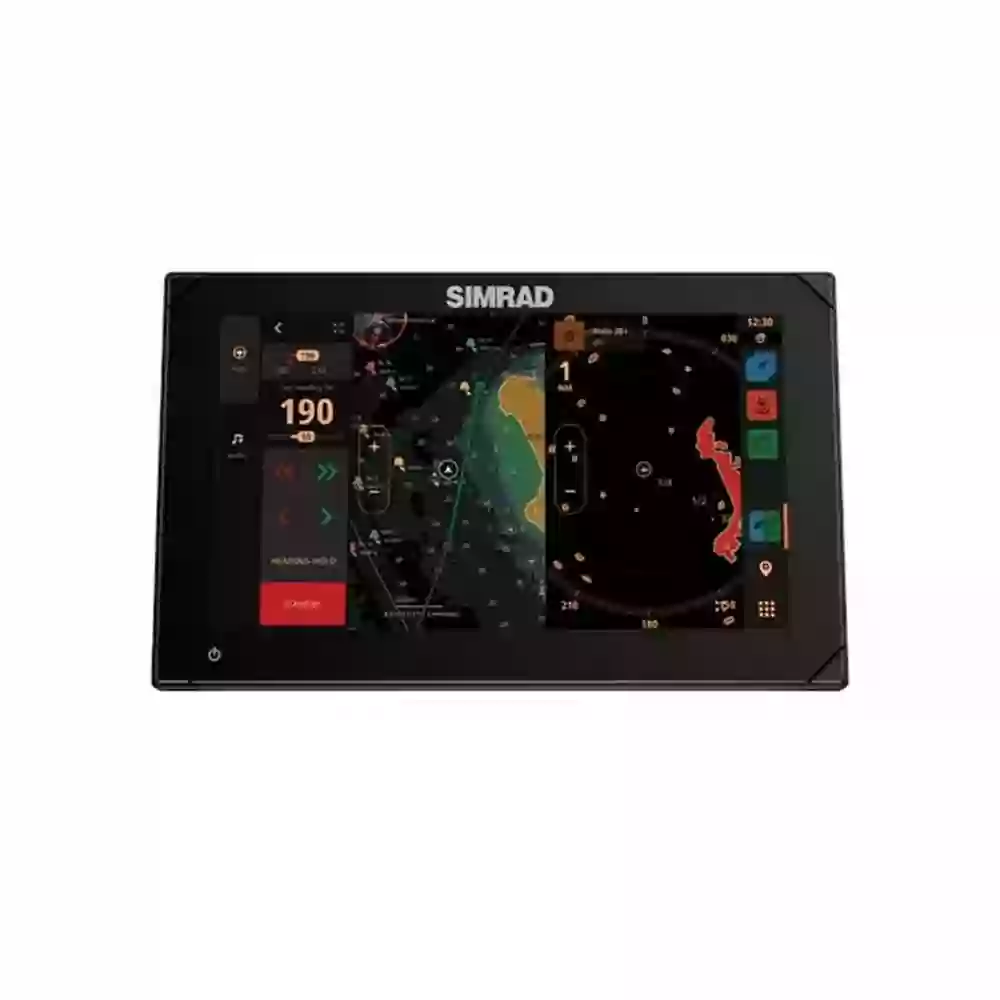

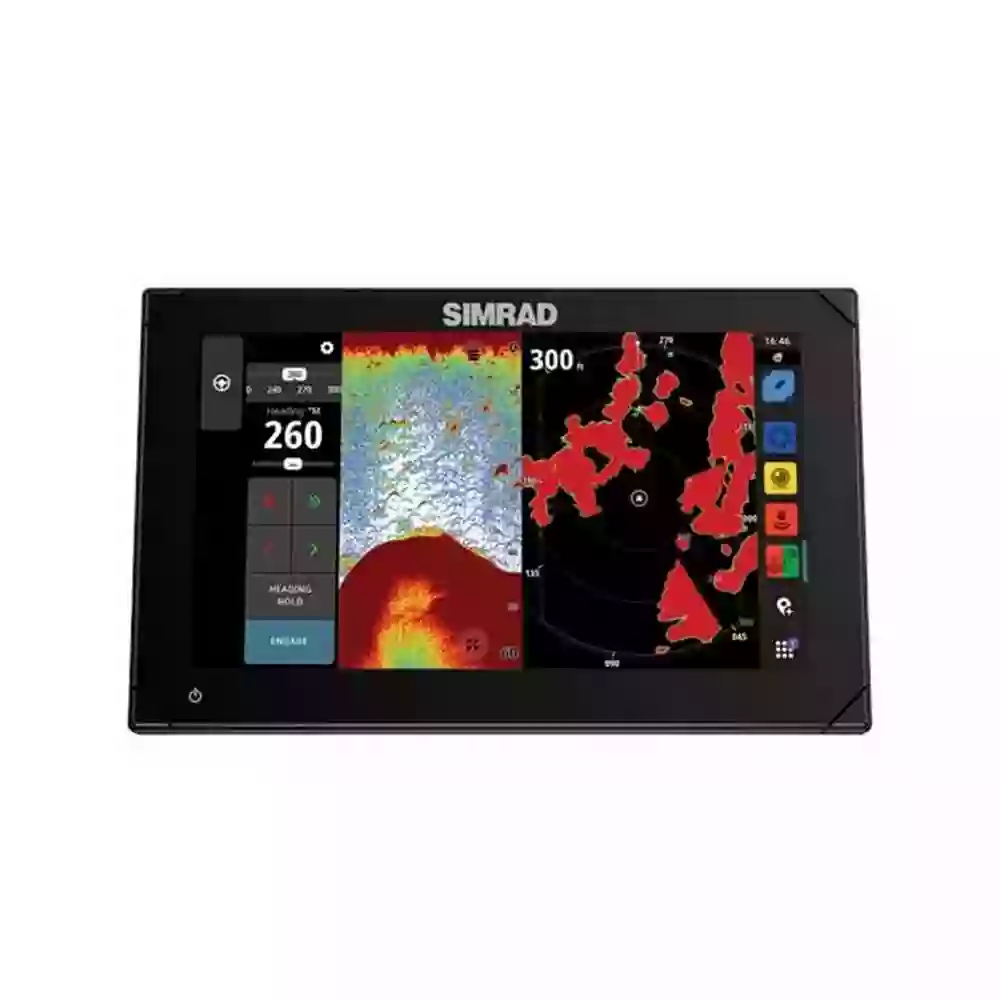

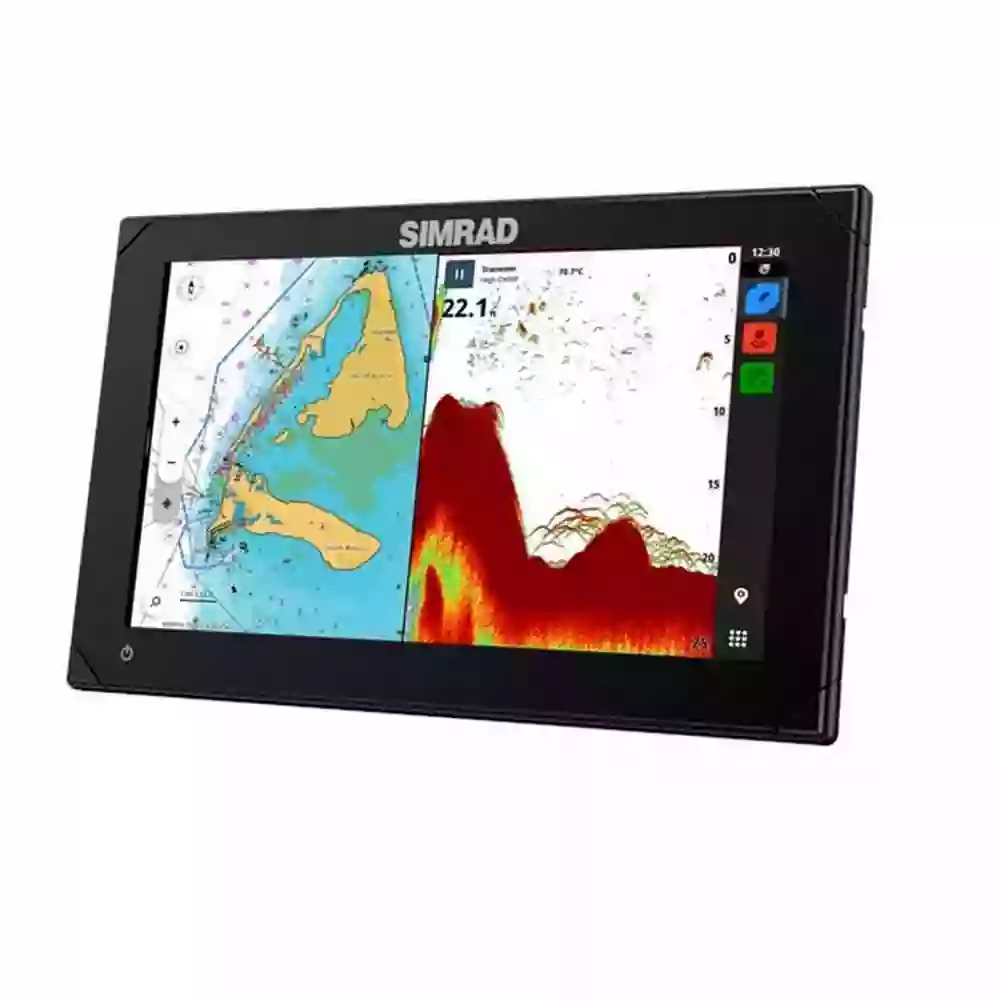

NSX 3009 Display No Transducer ( 000-15219-001)
NSX 3009 Display No Transducer ( 000-15219-001) - Image 2
NSX 3009 Display No Transducer ( 000-15219-001) - Image 3
NSX 3009 Display No Transducer ( 000-15219-001) - Image 4
NSX 3009 Display No Transducer ( 000-15219-001) - Image 5

NSX 3009 Display No Transducer ( 000-15219-001)

SIMRAD

Request a quote for latest pricing

Take your experience to a whole new level with the Simrad® NSX™ smart chartplotter and fishfinder. With an innovative, modern interface featuring powerful navigation capability with C-MAP® support, you’ll see everything like never before, our IPS touch screens capturing every detail. The NSX comes fully equipped with integrated Sonar, Radar, and Autopilot systems, and with our handy Setup Wizard tool you’ll be up and running in no time. All you need to do now is choose your next on-the-water adventure.

Request A Quote
Categories: , Brand:
  • Support for marine-optimized C-MAP® DISCOVER™ X and REVEAL™ X Charts: Featuring a fresh, intuitive chart presentation and daily updates.
  • High-definition IPS touch screen: Offers extreme viewing angles, even viewable through polarized lenses.
  • High-resolution views of fish and structure: With Active Imaging™ featuring CHIRP, SideScan, and DownScan Imaging™, plus 1kW transducer capability for greater depths.
  • Setup Wizard: Simplifies sonar setup and gets you running quickly.
  • Full integration: Expand your system with Simrad® sonar, autopilot, radar, and more.
  • Faster Autorouting: Seamlessly accessible navigation.
  • HALO® Radar support: View near and far simultaneously (up to 42nm) with ultra-fast updates every second.
  • Simrad® autopilot integration: Stay on course with full autopilot capabilities.
  • Modern interface: Simple and straightforward for effortless navigation.
  • Simrad® App integration: Keep chart data at your fingertips on and off the water.
  • Third-party app integration: Expand functionality with supported apps.
  • Wireless connectivity: Includes full Ethernet and NMEA 2000® networking capability.
  • IP Video Support: Enhanced video features for surveillance and monitoring.
  • Display: 9-inch high-definition IPS touch screen, 1280 x 720 px resolution, white backlight, >1200 nits brightness.
  • Viewing Angles: 85° (top, bottom, left, right).
  • Compass Safe Distance: 50 cm (1.7 ft).
  • Dimensions:
    • With bracket: 263.0 mm x 172.6 mm x 80.6 mm.
    • No bracket, no suncover: 239.0 mm x 148.5 mm x 80.6 mm.
    • No bracket, with suncover: 243.7 mm x 153.4 mm x 85.6 mm.
  • Mounting Type: Bracket (supplied), panel mount, or flush mount.
  • Weight: 1.2 kg (2.6 lbs).
  • Power Consumption: 18.8 W (1360 mA at 13.8 V).
  • Recommended Fuse Rating: 3A.
  • Supply Voltage: 12 V DC (10 – 17 V DC).
  • Operating Temperature: -15°C to 55°C (5°F to 131°F).
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F).
  • Waterproof Rating: IPx6 and IPx7.
  • Connectivity:
    • Bluetooth 4.0, support for Bluetooth Classic.
    • Wi-Fi: IEEE 802.11b/g/n.
    • Ethernet: 1 port (5-pin connector).
    • NMEA 2000: 1 Micro-C port, 1 LEN.
  • Sonar Compatibility: Supports CHIRP, SideScan, and DownScan Imaging™, and 1kW transducers.
  • Power Cable: 4-Pin.
  • Gimbal Bracket: Compatible with NSS7 evo3, GO9, Cruise 9, Vulcan 9, Zeus³ 7.
  • Transducer: Active Imaging 3-in-1 Transducer.
  • Suncover: For NSX 3009.
  • Dash Mounting Kit: Compatible with NSX 3009, Vulcan2 9″.
  • Accessory: Zeus S corner clip.
